Removing Left Water Drip Pan

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

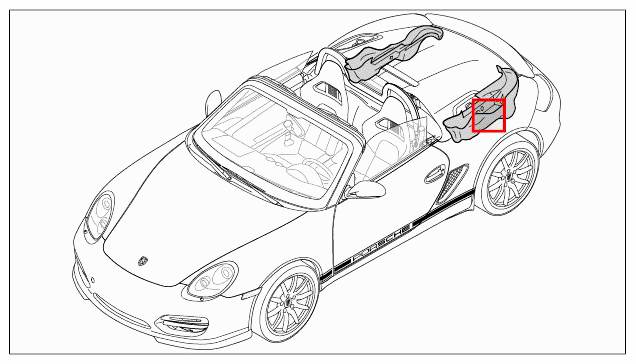

Fig 1: Identifying Removing Position Of Water Drip Pan
G09590286Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove spacer sleeves -2-  and sealing ring -3- (-arrow A-)  .
  2. Check sealing rings -3-  and replace them if necessary.
  3. Fold over water drip pan -4-  all the way around and remove it by pulling it backwards -arrow B-  .

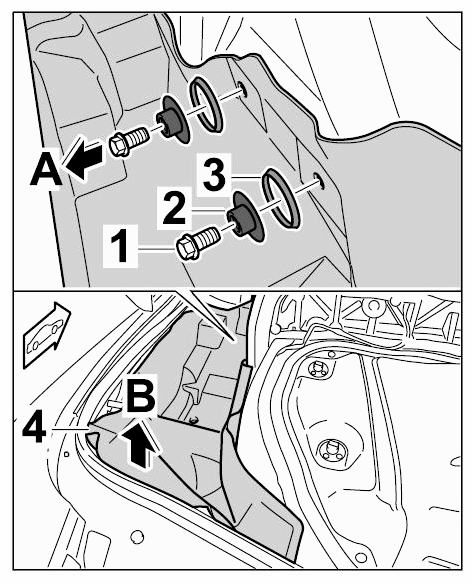

    4. Fig 2: Removing Water Drip Pan Fastening Screws
    G09590287Courtesy of PORSCHE CARS NORTH AMERICA, INC.
