Removing Water Drip Pan: Overview

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

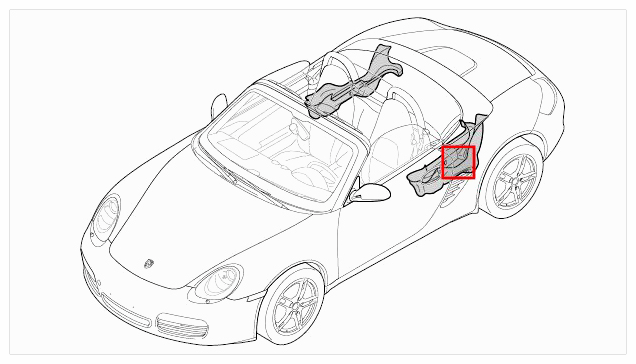

Fig 1: Identifying Removing Position Of Water Drip Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove fastening screw -1- on belt reel -2- and remove belt reel from roll-over bar -arrow- .
Remove three fastening screws -1- from the convertible top support -2- .

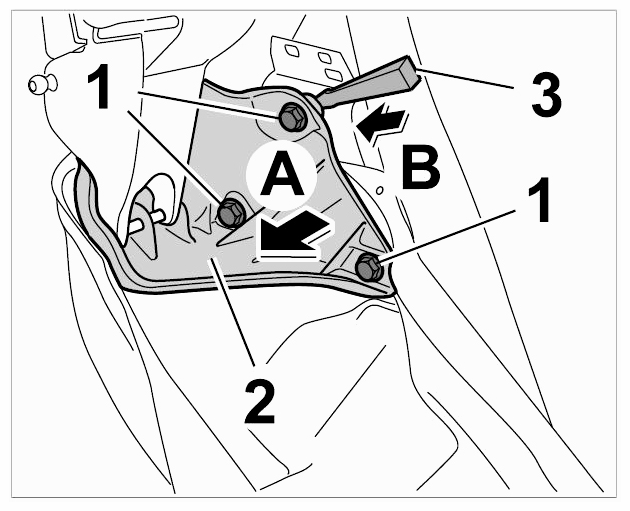

Fig 2: Releasing Convertible Top Support Fastening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect handling of tools
- Risk of damage to the body
→ Only use tools approved by Porsche.

→ Always ensure that the tool is seated correctly.

→ Protect the body and interior of the vehicle from damage with protective covers.

→ Cover delicate components with cardboard or sheetmetal panels.
NOTE:
Incorrect handling of tools
- Risk of damage to the body
→ Only use tools approved by Porsche.

→ Always ensure that the tool is seated correctly.

→ Protect the body and interior of the vehicle from damage with protective covers.

→ Cover delicate components with cardboard or sheetmetal panels.
Pull convertible top support -2- out by approx. 10 mm -arrow A- and use a spacing block -3- to secure it between the roll-over bar and the convertible top support -arrow B- .

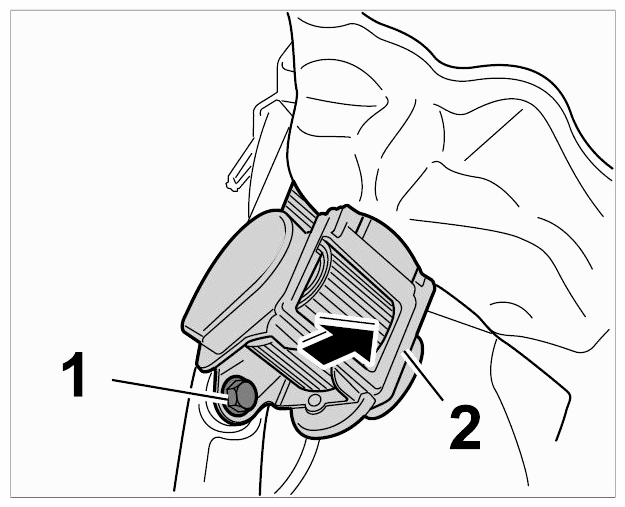

Fig 3: Removing Belt Reel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen water drip pan -1- from the two strips of double-sided adhesive tape -2- close to the fastening for the convertible top support.
Pull water drip pan -1- down and out -arrows- behind the convertible top support -3- .

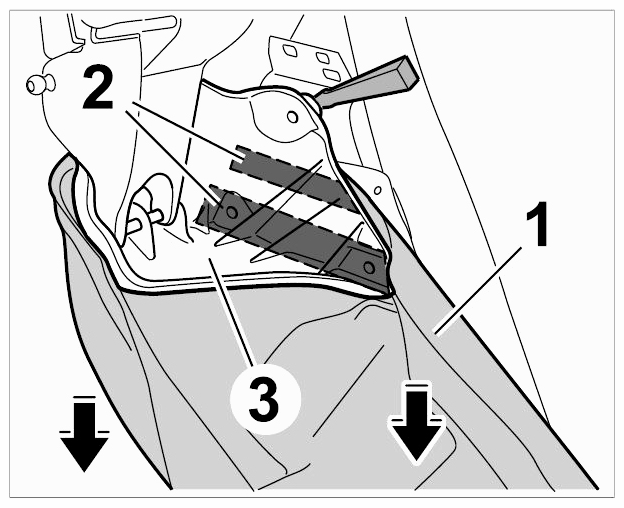

Fig 4: Removing Water Drip Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
