Installing Left Water Drip Pan

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

When installing the water drip pan, make sure that the rear part of the water drip pan is fitted under the seal and the front outer part is fitted under the water drain plate.

  1. Position water drip pan -4-  on the body and align it -arrows-  .
  2. Check that the water drain is seated correctly.
  3. Position spacer sleeves -2-  and sealing rings -3-  on the water drip pan -arrow-  and secure with the fastening screws -1-  . → Tightening torque: 23 Nm (17 ftlb.)

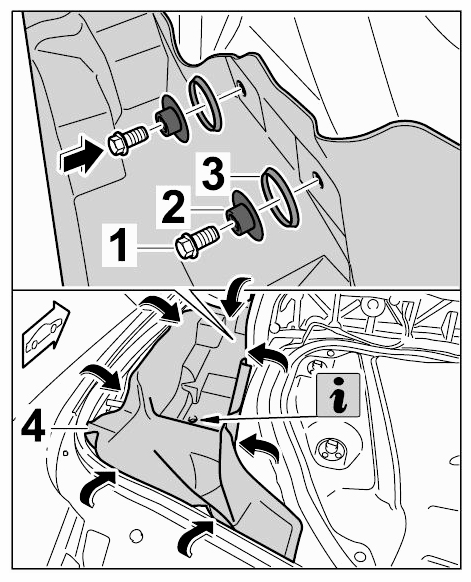

    4. Fig 1: Installing Left Water Drip Pan
    G09590294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
