Installing Convertible-Top Peg Mount

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

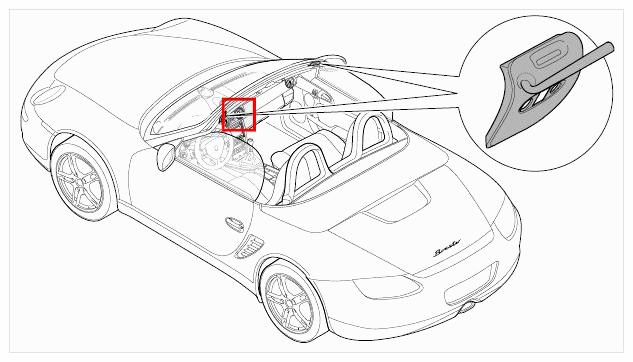

Fig 1: Identifying Installation Position Of Convertible-Top Peg Mount
G09590271Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Place convertible-top peg mount -2-  on windscreen frame from below -arrow-  , position it correctly and screw down hand-tight using the fastening screws -1-  .

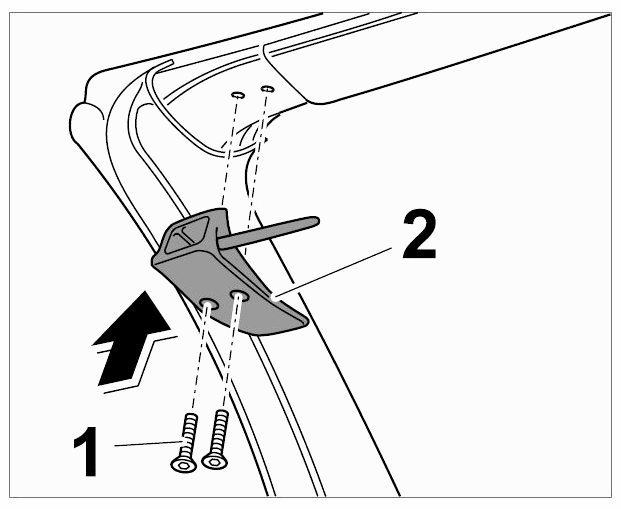

    Fig 2: Installing Convertible-Top Peg Mount
    G09590272Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. To prevent rattling noises, the two convertible-top peg mounts (left and right) must be facing outwards with respect to the centering pins fitted on the convertible top or hardtop when tightening the screws. The convertible top must be closed or the hardtop must be fitted in order to check the adjustment.
  3. Tighten fastening screws -1-  . Tightening torque → Final tightening: 10 Nm (7.5 ftlb.)
