Removing Front Lock

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

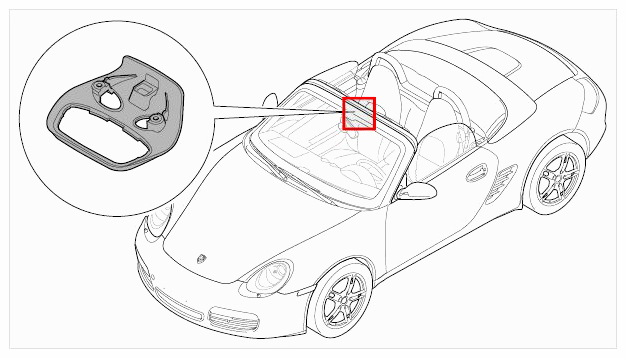

Fig 1: Identifying Removal Position Of Front Lock
G09590223Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release the two fastening screws -1-  and pull the front lock -2-  down and off -arrow-  from the windscreen frame.

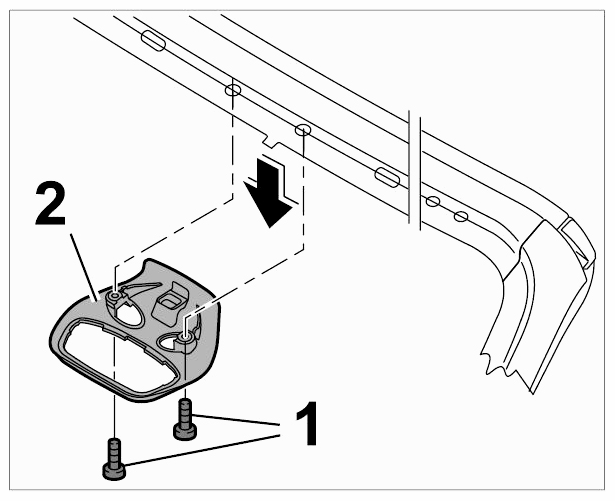

    Fig 2: Locating Front Lock And Mounting Screw
    G09590224Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push up the electric connecting lines for the interior light and the control unit for garage door opener through the assembly openings on the front lock.
  3. Pull off connector -1-  on microswitch for roof -2- -arrow-  .

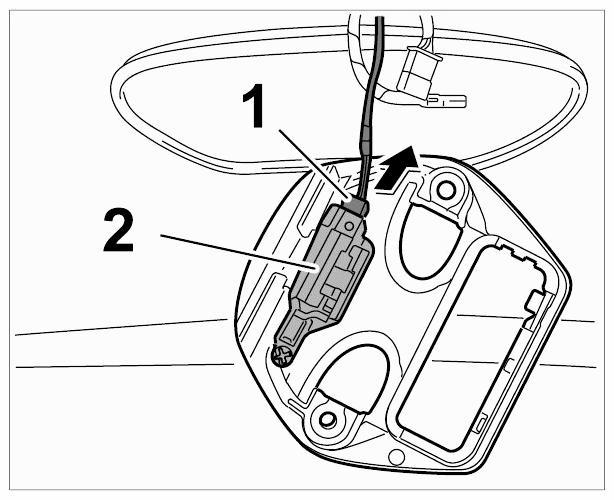

    Fig 3: Pulling Off Microswitch Connector
    G09590225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
