Making Swivel Arm

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Make swivel arm -C- with basic material Multiplex plate 550 x 200 mm, 25 mm thick.

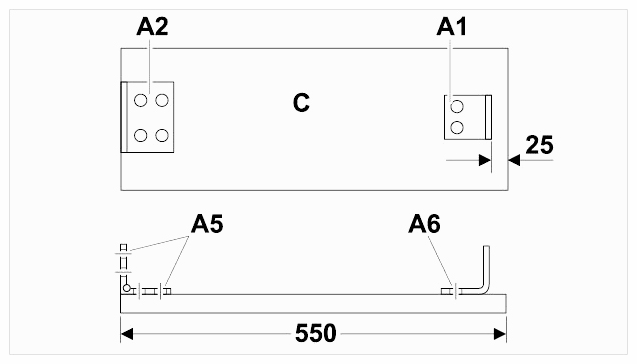

Fig 1: Identifying Swivel Arm Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-A1- = Retaining bracket

-A2- = Hinge

-A5- = countersunk screw 4.5 x 20

-A6- = countersunk screw 6 x 20

-C- = Swivel arm

Work procedure:
1. 1.1. Fit retaining bracket -A1- with 2 countersunk screws -A6- following the dimensions specified on the swivel arm -C- .
2. 1.2. Fit hinge -A2- with 4 countersunk screws -A5- following the dimensions specified on the swivel arm -C- .
