Subsequent Work
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
Automatic vehicles:
- Install drive plate for torque converter.
→ Installing Drive Plate For Converter .
→ Initial tightening: 25 Nm (19 ftlb.)
→ Torque angle: 120°
- Install automatic transmission.
Manual transmission vehicles:
- Install flywheel.
→ Installing Double-Mass Flywheel .
→ Initial tightening: 25 Nm (19 ftlb.)
→ Torque angle: 120°
Information
Loosen and tighten screws on the component according to specifications.
- Install the clutch.
→ Tightening torque: 23 Nm (17 ftlb.)
All vehicles:

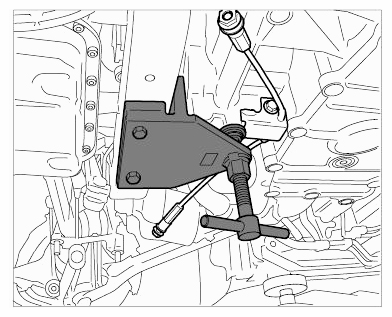

- Loosen spindle, unscrew retaining device 9624/3 at the cross member and remove it.
