Removing Side Trim Panel

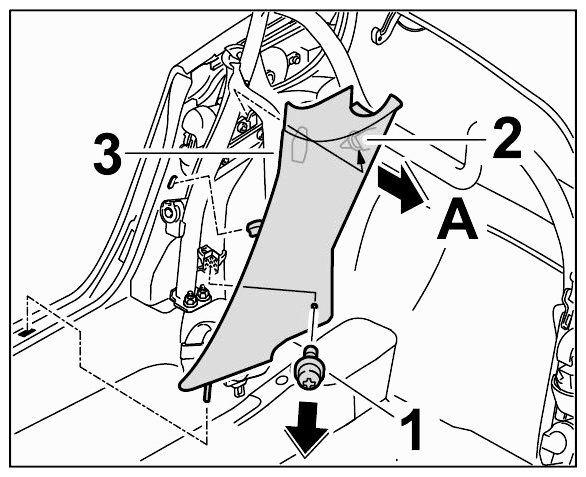

- Unscrew fastening screw 1
.
- Unclip plastic clip 2
in the direction of arrow A
.
- Lift side trim panel up 3
and off.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

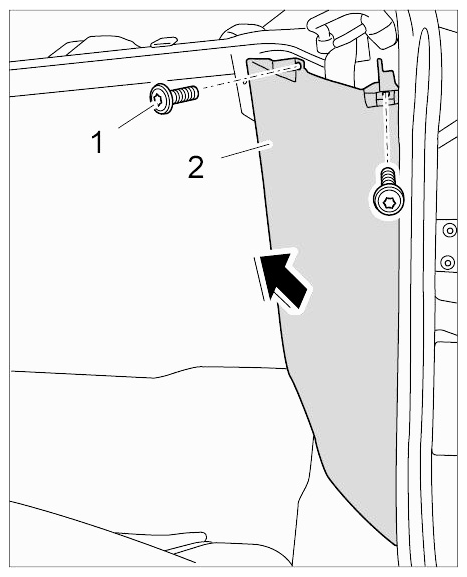

- Unscrew fastening screws -1-
, lift side trim panel -2-
from lower side member and pull out.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

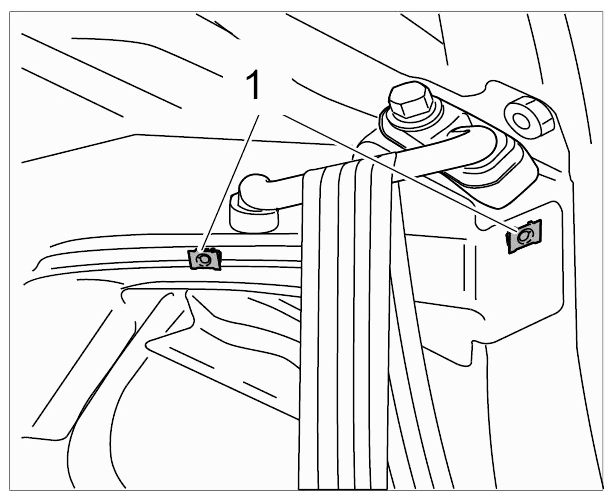

- Check fastening nuts -1-
and replace if necessary
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
