Locking Plug Connection For Radio Antenna

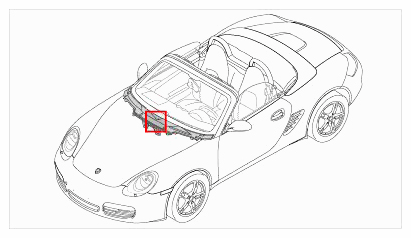

Fig 1: Identifying Installation Position Of Cowl Panel Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with radio antenna.

1. Connect the antenna line and clip on the fuse.
2. Slide antenna onto its support and screw it down with the fastening screws -1-  .

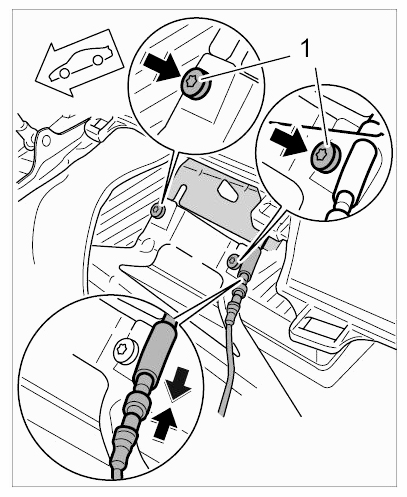

Fig 2: Disconnecting Plug Connection For Radio Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
