Removing Wiper Arm For Rear Window Washer

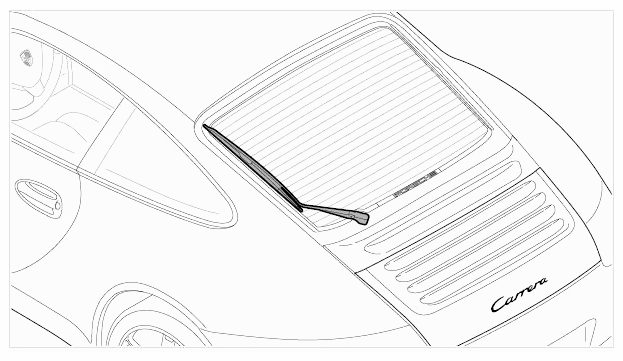

Fig 1: Identifying Wiper Arm For Rear Window Washer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Pull cover -1-  up and off.

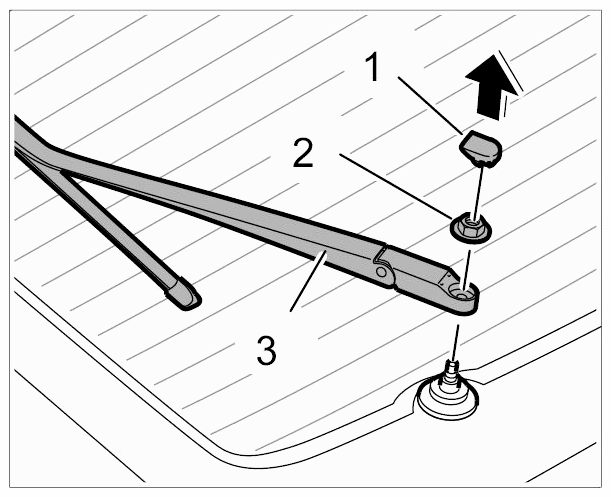

   Fig 2: Removing Wiper Arm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew the fastening nut -2-  .
3. Press wiper arm -3-  down at joint and pull down from the wiper motor drive.
