Tools And Materials

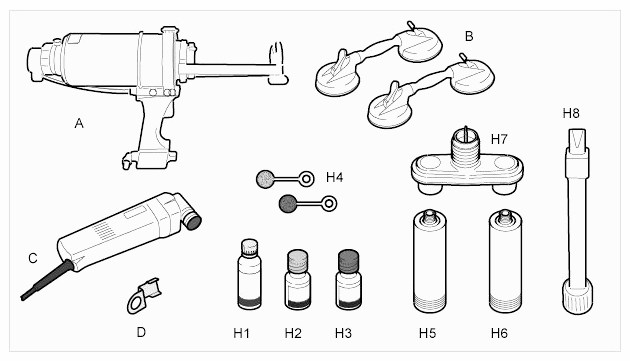

The following tools and materials are required for removing and installing the rear window with 2-component adhesive:
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Item |
Designation |
Source |
Explanation |
| -A- |
Double cartridge pistol VAS 5237 WE 1278 |
|
|
| -B- |
Pipette - Stahlwille WE 1140 |
|
|
| -C- |
Special electric cutter - fine WE 1137 |
|
|
| -D- |
Flashing knife, U-type 639.031.130.22 |
|
|
| -H- |
→ ADHESIVE SET |
|
Contains set components H1-H8 |
| Item |
Designation |
| -H1- |
Cleaning solution |
| -H2- |
Primer |
| -H3- |
Activator |
| -H4- |
Swab |
| -H5- |
Cartridge, component A |
| -H6- |
Cartridge, component B |
| -H7- |
Mixing nozzle |
| -H8- |
Processing nozzle |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Item |
Designation |
Source |
Explanation |
| -A- |

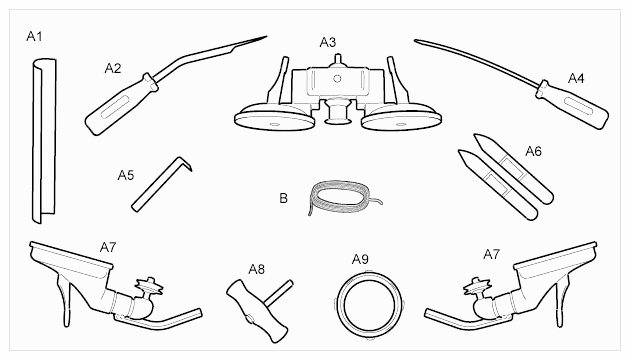

Separator for bonded windows V.A.G. 1474 B WE 1187 |
|
Contains set components A1-A9 |
| -B- |
Cutting thread |
|
