Removing Rear Window

Information

• The door windows must not be closed until after the curing time has elapsed.

1. Lower the door window.
2. Pull off the connector for the rear window heater -1-  on the rear window.

   Information

   • To avoid damaging the electric line when cutting out the rear window, affix this to the rear window with adhesive tape.
3. Stick connector for rear window heater on the rear window at the left and right with adhesive tape -2-  .

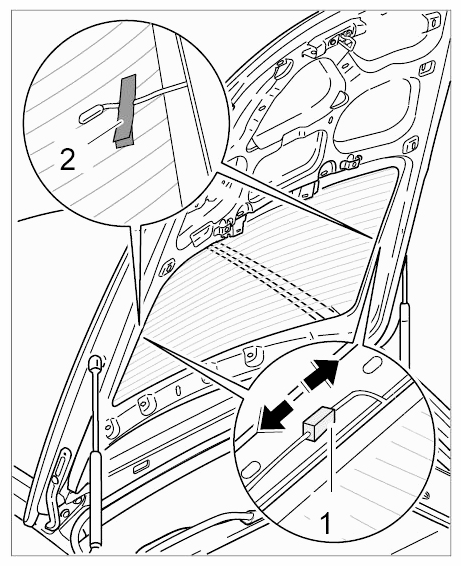

   Fig 1: Disconnecting Connector For Rear Window Heater

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove rear window with the cutting wire separator. → Removing Glass With Cutting Wire Separator

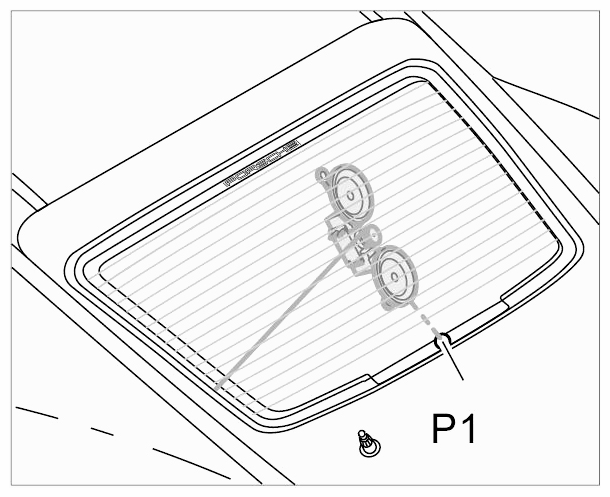

   Fig 2: Separating Glass (P1)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The door windows must not be closed until after the curing time has elapsed.

1. Lower the door window.
2. Pull off the connector for the rear window heater -1-  on the rear window.

   Information

   • To avoid damaging the electric line when cutting out the rear window, affix this to the rear window with adhesive tape.
3. Stick connector for rear window heater on the rear window at the left and right with adhesive tape -2-  .

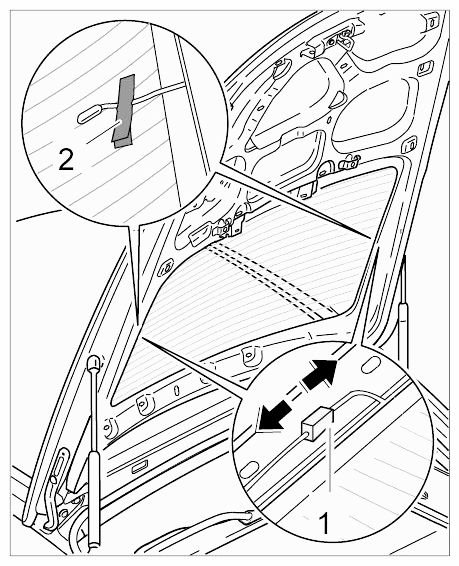

   Fig 1: Disconnecting Connector For Rear Window Heater

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove rear window with the cutting wire separator. → Removing Glass With Cutting Wire Separator
   Fig 2: Separating Glass (P1)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
