Applying Adhesive On The Rear Window

Information

When applying adhesive, always check that:

• the adhesive has been applied along the marked line on a new rear window.
• the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.

1. Using a bonding gun -A-  apply 2-component adhesive to the rear window along the marked line in the form of a triangular bead measuring -X= approx. 15 mm- -Y= approx. 8 mm-.

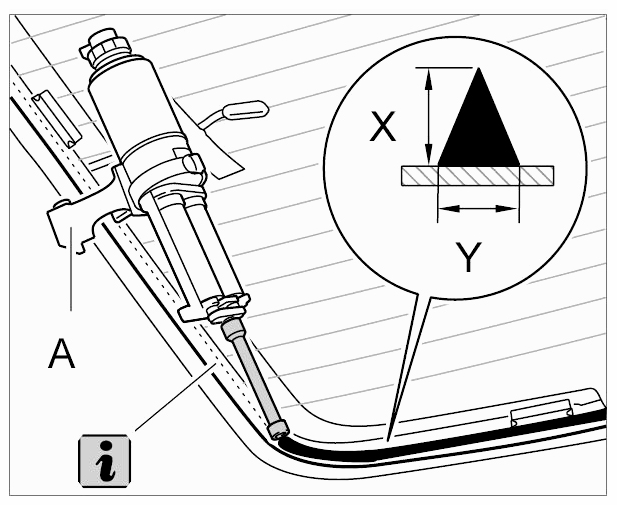

   Fig 1: Applying Adhesive Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When applying adhesive, always check that:

• the adhesive has been applied along the marked line on a new rear window.
• the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.

1. Using a bonding gun -A-  apply 2-component adhesive to the rear window along the marked line in the form of a triangular bead measuring -X= approx. 15 mm- -Y= approx. 8 mm-  .

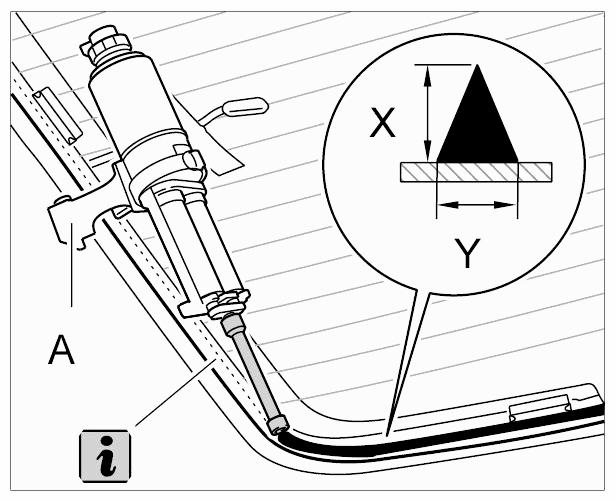

   Fig 1: Applying Adhesive On Rear Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
