Removing Side Window Seal

  1. Drill out rivets -2-  from the integrated sheetmetal strip of the seal for the side window -1-  using a 4.1 mm drill bit.

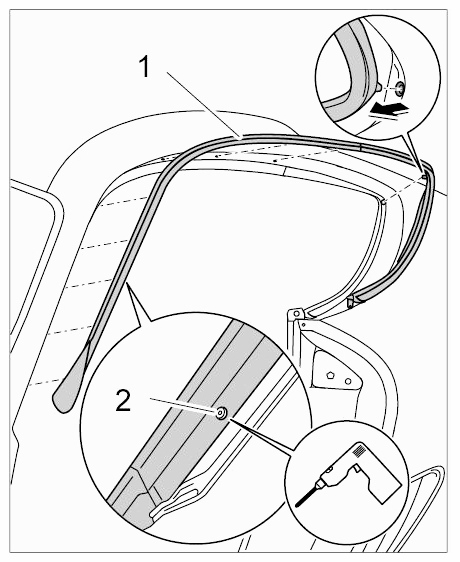

    Fig 1: Removing Side Window Seal
    G09590859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip side window seal -1-  and remove.
