Installing Side Window

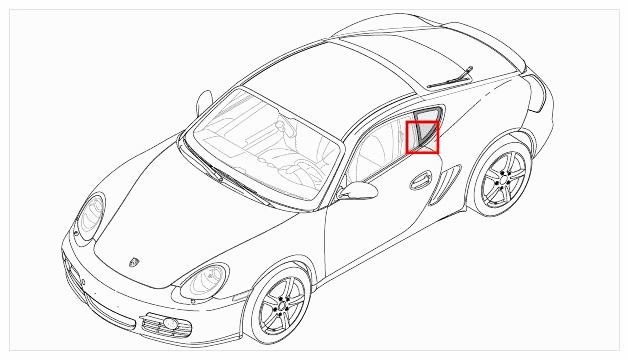

Fig 1: Identifying Side Window Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The removed side window can be reinstalled if there is no prior damage to the side window.

1. Slightly pull out seal for side window -1-  .
   Fig 2: Pulling Out Seal For Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

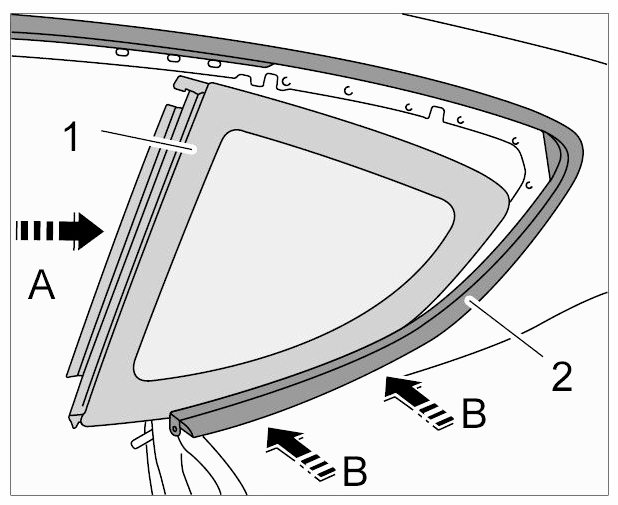

2. Insert the side window -1-  into the side window seal -2- (-arrow A-)  and press them together into the side panel -arrow B-  .
   Fig 3: Installing Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

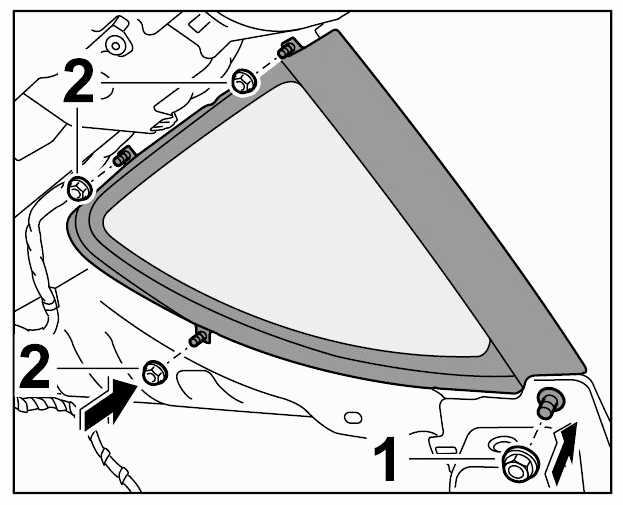

3. Coat the threaded pin with Loctite 243  . Fit fastening nuts -1, 2-  .
   Fig 4: Securing Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Rivet down seal for side window -1-  with rivets -2-  .
   Fig 5: Securing Side Window Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Press in rubber seal for door. → INSTALLING RUBBER SEAL FOR DOOR
6. Adjust the side window with respect to the door window (check that they are parallel and check adjustment dimensions). → Gap dimension A: 7 mm+/-1 mm
   1. 6.1. Slide the side window -1-  loosely into the holes until gap dimension -A-  is reached. → Gap dimension A: 7 mm+/-1 mm
   2. 6.2. Adjust the side window -1-  in Y  direction at the adjusting screw -2-  until gap dimension -B-  is reached. → Gap dimension B: 1 mm

      Align the side window parallel to the door window if the gap is conical.

   3. 6.3. Tighten fastening nuts once you have aligned the window. → Tightening torque: 6 Nm (4.5 ftlb.) → Tightening torque: 2.5 Nm (2 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
   Fig 6: Adjusting Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
