Removing The Front Window Bay Seal

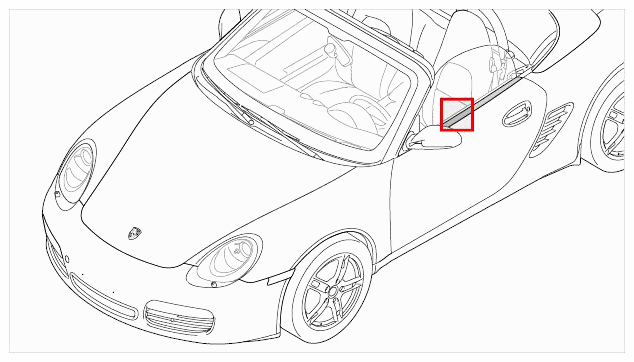

Fig 1: Identifying Front Window Bay Seal Installation Position
G09590819Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open the front door window -1-  fully.

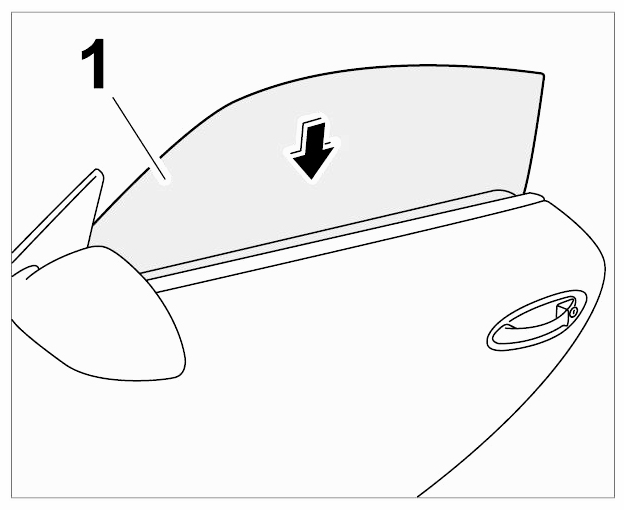

    Fig 2: Opening Front Door Window
    G09590820Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull front window bay seal -1-  - beginning at the rear end -Arrow A-  - off the sheetmetal door flange -2-  in an upward direction -Arrow B-  .
  3. Remove the front window bay seal -1-  .

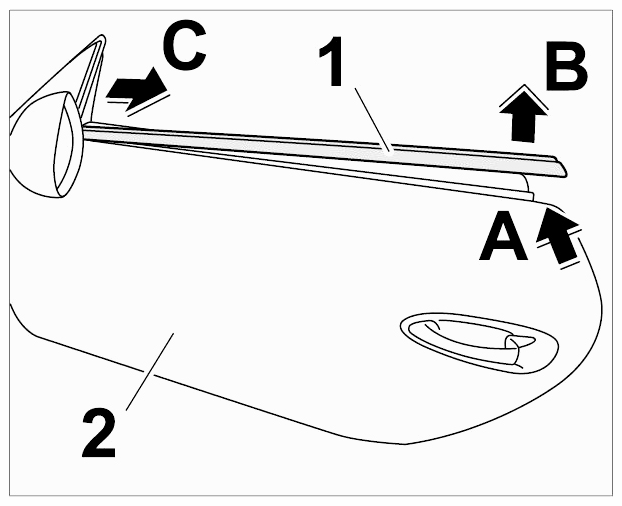

    4. Fig 3: Removing Front Window Bay Seal
    G09590821Courtesy of PORSCHE CARS NORTH AMERICA, INC.
