Removing Spacer Blocks

  1. Insert a spatula under the spacer blocks -1-  and remove the expanding rivets. Spacer blocks -1-  must be replaced.

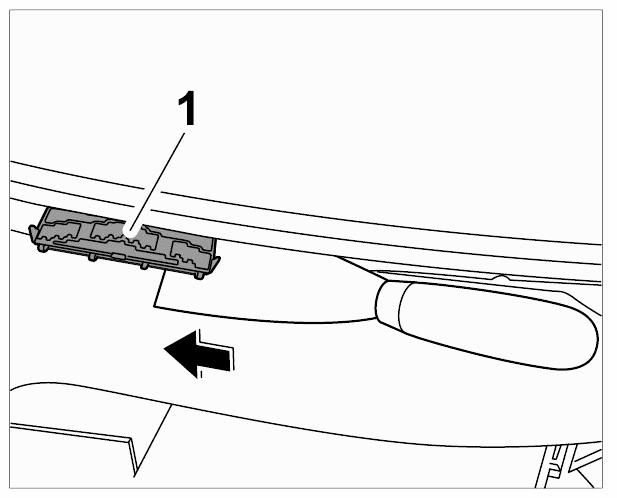

    Fig 1: Removing Spacer Blocks
    G09590717Courtesy of PORSCHE CARS NORTH AMERICA, INC.
