Removing Backrest Pocket

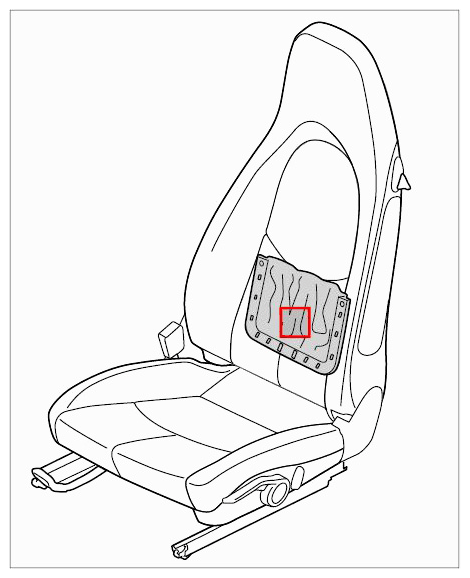

Fig 1: Identifying Installation Position Of Backrest Pocket
G09592699Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  with washers -2-  on the inside.
  2. Pull backrest pocket -3-  out slightly at the top and disengage upwards.

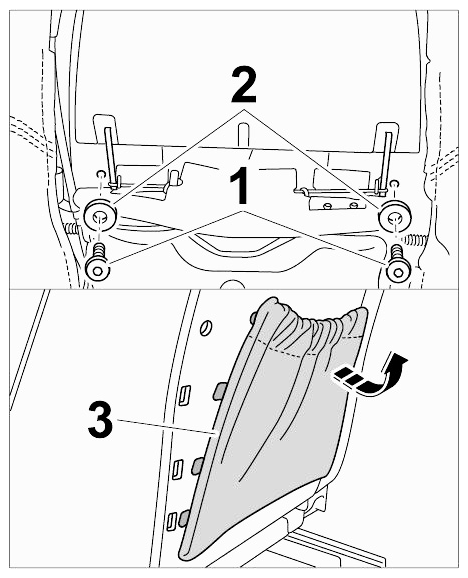

    3. Fig 2: Removing Backrest Pocket
    G09592700Courtesy of PORSCHE CARS NORTH AMERICA, INC.
