Producing Assembly Fixture

Information

• The following assembly fixtures must be produced for assembly work on the rear retaining strip.

1. The following tools and materials are required for producing the assembly fixtures:
   1. 1.1. Sabre saw 00000
   2. 1.2. Measuring tape 00000
   3. 1.3. Commercially available hardwood block 00000
2. Make hardwood block for assembly fixtures -1-  with the corresponding stated dimensions.
   1. 120 mm
   2. 72.5 mm
   3. 72.5 mm

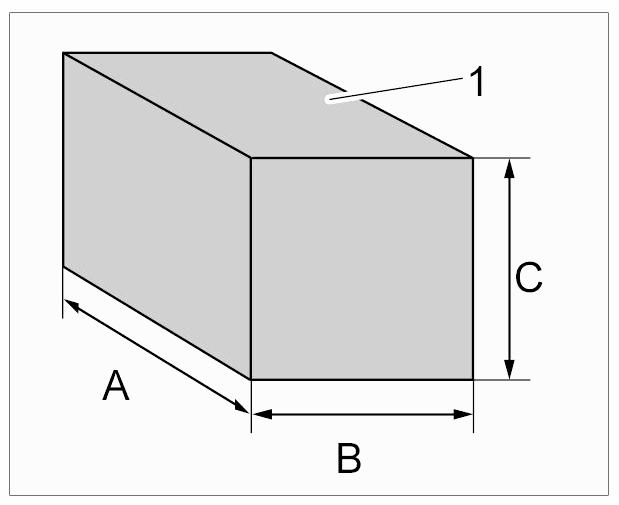

      Fig 1: Identifying Hardwood Block Assembly Fixture Dimensions

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
