Removing Diffuser Cover

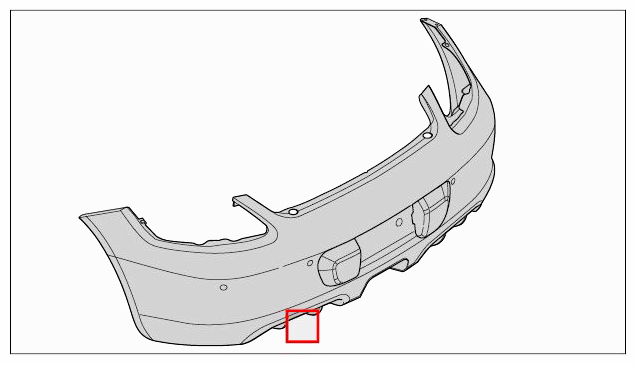

Fig 1: Identifying Rear Apron
G09590677Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release the diffuser cover -1-  by pressing the top locking lugs and press it back slightly out of the retaining frame -2-  .
  2. Carefully release the bottom locking lugs with a screwdriver and remove the diffuser cover -1-  completely from the retaining frame -2-  (-arrows-  ).

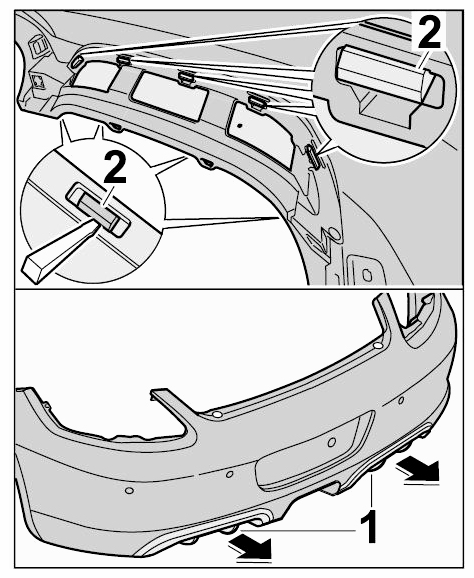

    3. Fig 2: Removing Rear Apron Diffuser Cover
    G09590678Courtesy of PORSCHE CARS NORTH AMERICA, INC.
