Removing Covering Frame

  1. Release covering frame -1-  by pressing the locking lugs and remove it from the rear apron -2-  (-arrow-  ).

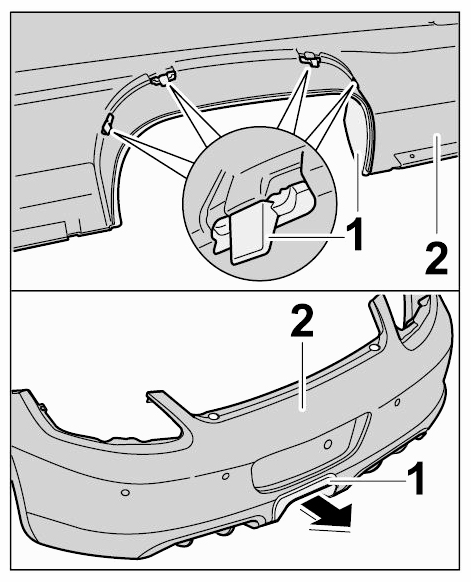

    Fig 1: Removing Rear Apron Covering Frame
    G09590679Courtesy of PORSCHE CARS NORTH AMERICA, INC.
