Installing Diffuser Cover

  1. Position the diffuser cover -1-  on the retaining frame -2-  and press it in -arrow-  until the locking lugs engage.

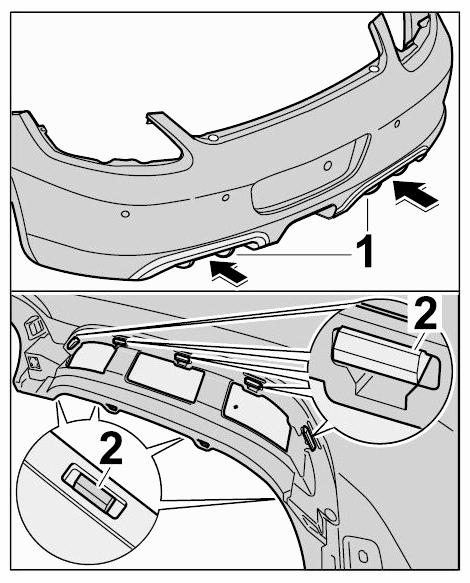

    Fig 1: Installing Rear Apron Diffuser Cover
    G09590687Courtesy of PORSCHE CARS NORTH AMERICA, INC.
