Checking Anti-Chafing Film

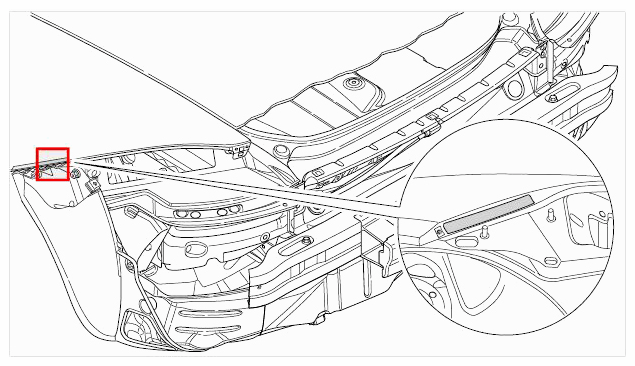

Fig 1: Identifying Anti-Chafing Film Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Replacing anti-chafing film:

• The bonding surface must be free from dirt, oil, and water residues.
• Ensuring there are no bubbles, bond in the anti-chafing film to the dimension X= 0 - 2 mm at the hole opening and side panel surface.

1. Check anti-chafing film -1-  and replace it if necessary.
2. Check fastening nuts -2-  and replace if necessary.

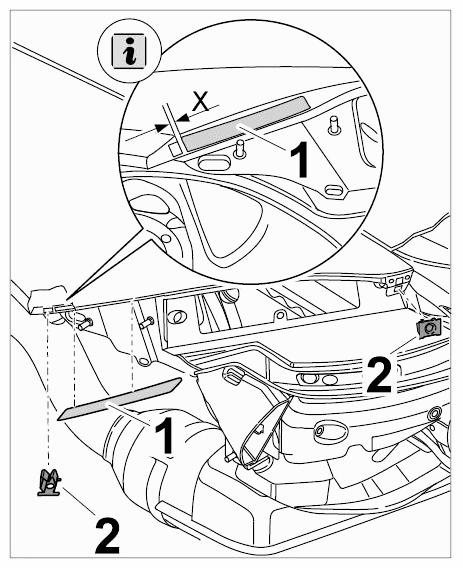

Fig 2: Identifying Anti-Chafing Film Dimension
