Installing Front Wiring Harness

  1. Position and engage wiring harness in front apron.

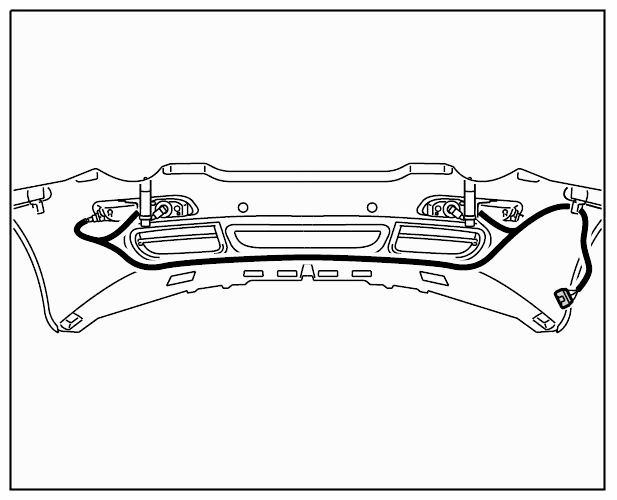

    Fig 1: Identifying Auxiliary Headlight And Front Apron Electric Lines
    G09593818Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect plug connection to auxiliary headlight and engage the lines on the auxiliary headlight.

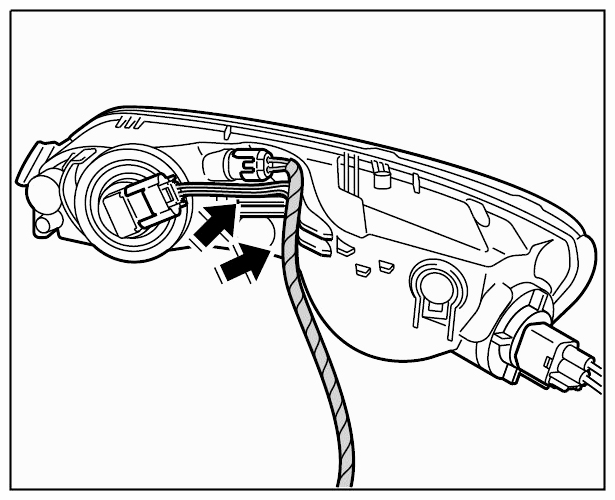

    Fig 2: Locating Auxiliary Headlight Plug Connection
    G09593819Courtesy of PORSCHE CARS NORTH AMERICA, INC.
