Removing Cover For Centre Underbody

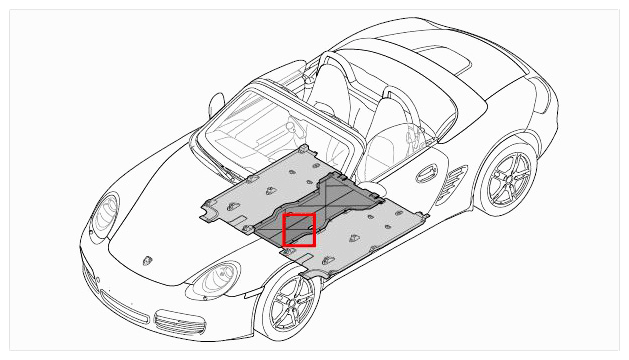

Fig 1: Identifying Installation Position Of Cover For Centre Underbody

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening nuts -3-  .

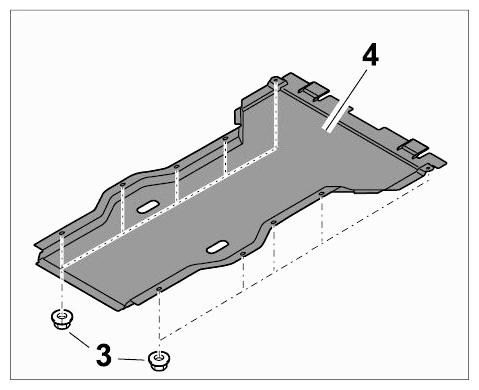

   Fig 2: Identifying Centre Cover And Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press covers for side underbody down slightly and remove cover for center underbody -4-  from overlaps.
