Removing Cover For Front Underbody

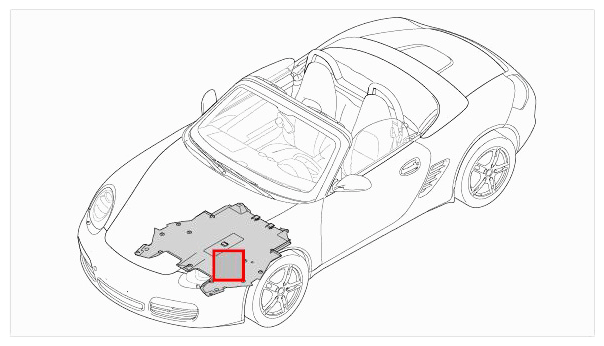

Fig 1: Cover For Front Underbody Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2-  and fastening nuts -3-  .

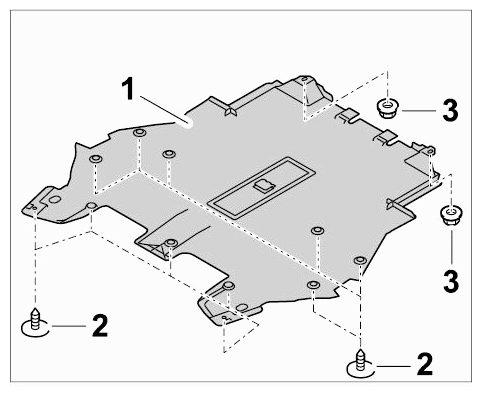

   Fig 2: Identifying Cover, Fastening Screws And Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull cover for front underbody -1-  out of the overlap.
