Installing Rear Spoiler Trim

Information

Ensure that the pull tabs on the adhesive tape are still accessible after positioning the components.

1. Install adapters for rear spoiler trim.

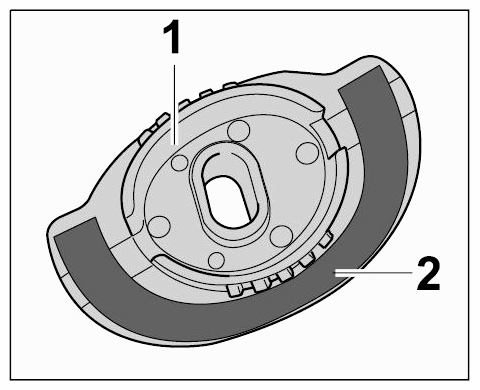

   1. 1.1. Affix adhesive tape -2-  to the underside of the adapters -1-  .
      Fig 1: Identifying Rear Spoiler Trim Adapter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Observe marking L = left and R = right on the adapters for the rear spoiler trim.
      • The position of the adapters cannot be changed once they are pressed in.

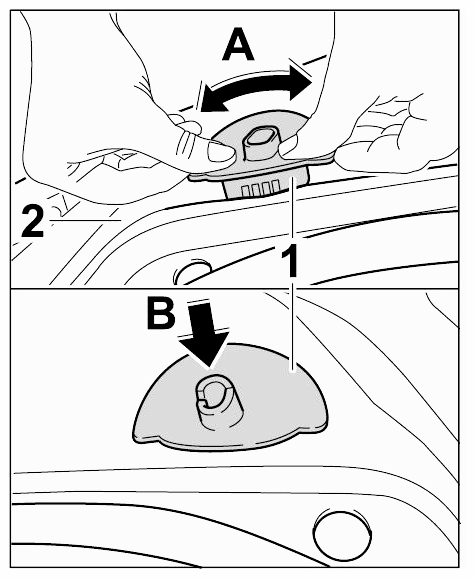

   2. 1.2. Pull off protective film and position adapter -1-  over the relevant bore hole on the rear apron -2-  .
   3. 1.3. Align adapter -1-  (-arrow A-  ), press it into the rear apron -2-  (-arrow B-  ) and press on firmly.
   Fig 2: Installing Rear Spoiler Trim Adapters
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install rear spoiler trim.
   1. 2.1. Get strips of adhesive tape ready.

      A= 30 mm + 60 mm

      Information

      Clean bonding surface to remove any dust and grease.

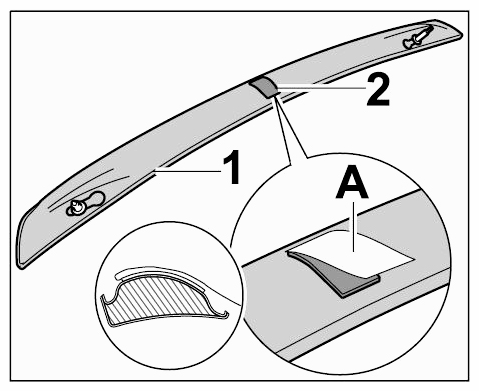

   2. 2.2. Affix adhesive tape -2-  to the underside of the rear spoiler trim -1-  . Place the pulling aids -A-  over the edge of the rear spoiler trim.
      Fig 3: Identifying Rear Spoiler Trim

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

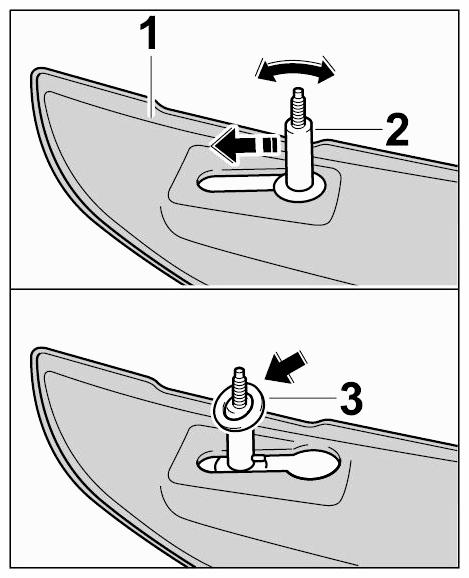

   3. 2.3. Insert mounting pin -2-  into the rear spoiler trim -1-  and turn it so that it slides into the guide -arrows-  .
   4. 2.4. Place spacers -3-  on the mounting pins -2-  (-arrow-  ).
   Fig 4: Inserting Rear Spoiler Trim Mounting Pins
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

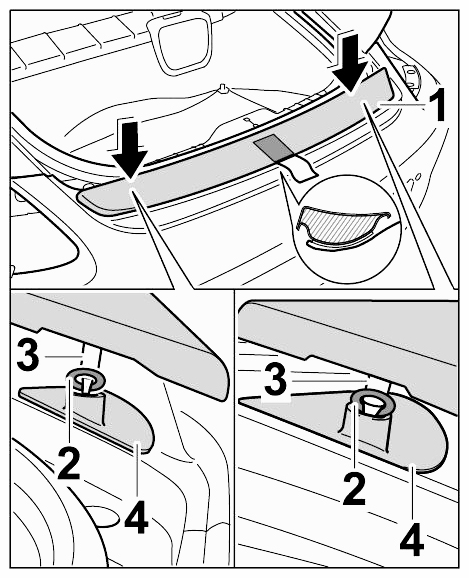

   5. 2.5. Guide rear spoiler trim -1-  with the spacers -2-  and mounting pins -3-  into the slots on the adapters -4-  (-arrows-  ).
      Fig 5: Installing Rear Spoiler Trim

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

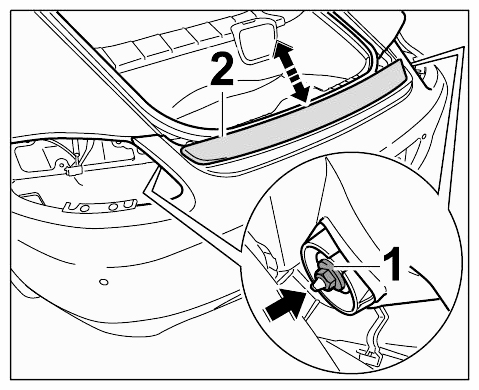

   6. 2.6. Guide pull tab on adhesive tape between the rear spoiler trim and rear apron out towards the rear -circular inset-  .
   7. 2.7. Fit fastening nuts -1-  at the left and right -arrow-  and tighten them so that the rear spoiler trim -2-  can still be moved.
      Fig 6: Securing Rear Spoiler Trim

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

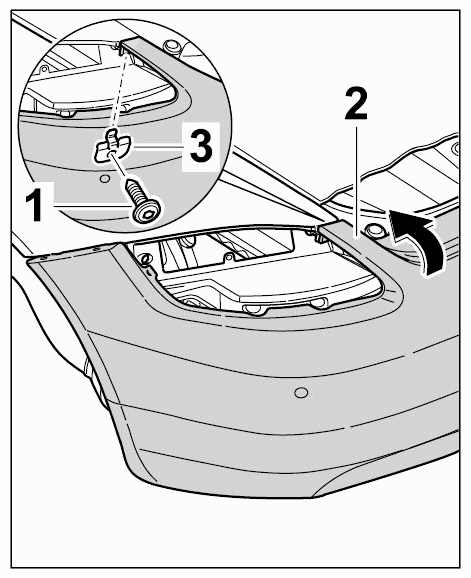

   8. 2.8. Position rear apron -2-  on the side panel -arrow-  , engage retainer plate -3-  in the square hole and secure with the fastening screw -1-  . → Tightening torque: 2.8 Nm (2 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
      Fig 7: Securing Rear Apron

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   9. 2.9. Close the rear lid.

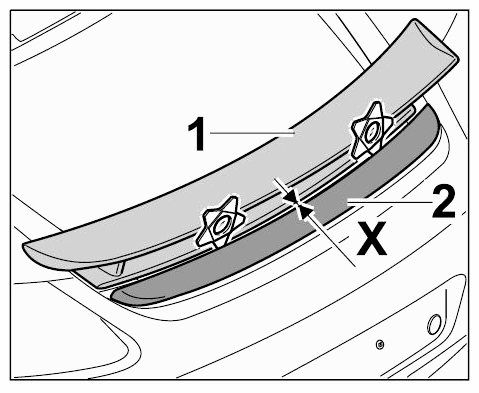

   10. 2.10. Use the measuring gauges to adjust the rear spoiler trim -2-  with respect to the rear spoiler -1-  to the dimension -X-  .

       → Gap dimension X: 4 mm

       Fig 8: Adjusting Rear Spoiler Trim

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   11. 2.11. Tighten fastening nuts at the left and right on the rear spoiler trim. → Tightening torque: 10 Nm (7.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

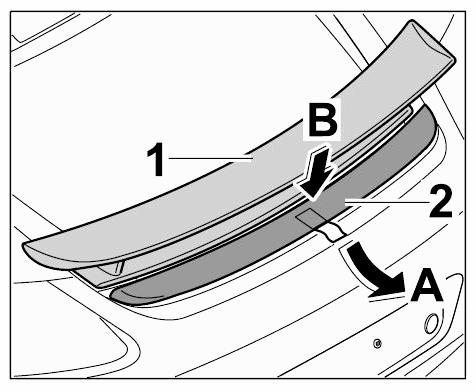

   12. 2.12. Carefully pull out the pull tab on the adhesive tape -arrow A-  .
   13. 2.13. Check gap between the rear spoiler -1-  and rear spoiler trim -2-  again.
   14. 2.14. Press on rear spoiler trim -1-  (-arrow B-  ).
   Fig 9: Securing Rear Spoiler Trim
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install tail light at the left and right. → INSTALLING TAIL LIGHT
