Installing Front Spoiler

  1. Guide the front spoiler -2-  into the front apron -3-  and lock it in place -arrows-  .
  2. Secure the front spoiler -2-  with the expanding clips -1-  by pressing in the locking pins.

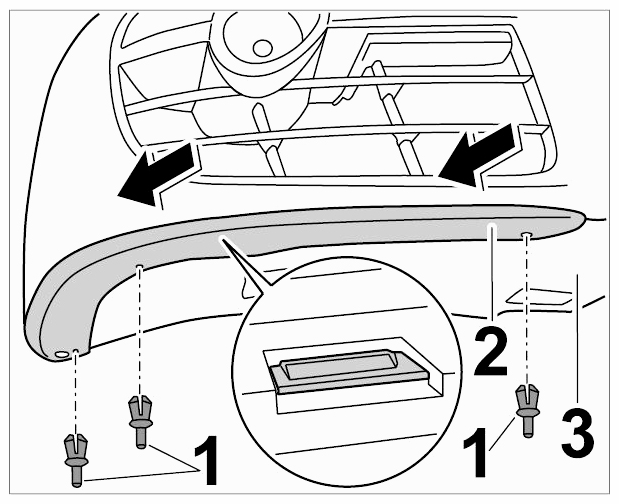

    3. Fig 1: Installing Front Spoiler
    G09590925Courtesy of PORSCHE CARS NORTH AMERICA, INC.
