Removing Rear Impact Pipe

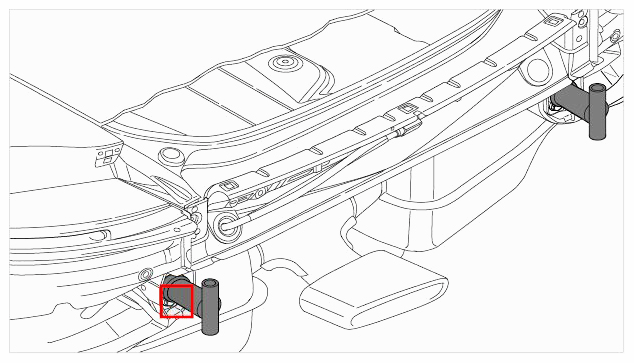

Fig 1: Identifying Rear Carrier Installation Position
G09590701Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .
  2. Remove the impact pipe -2-  with seal -3-  .

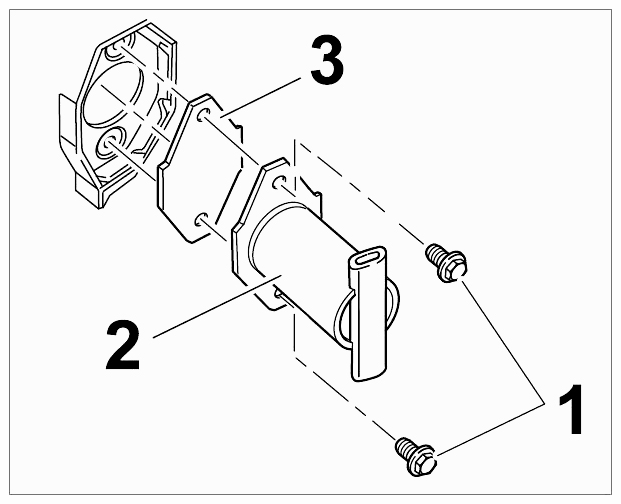

    3. Fig 2: Identifying Impact Pipe, Seal And Mounting Screws
    G09590702Courtesy of PORSCHE CARS NORTH AMERICA, INC.
