Install Rear Impact Pipe

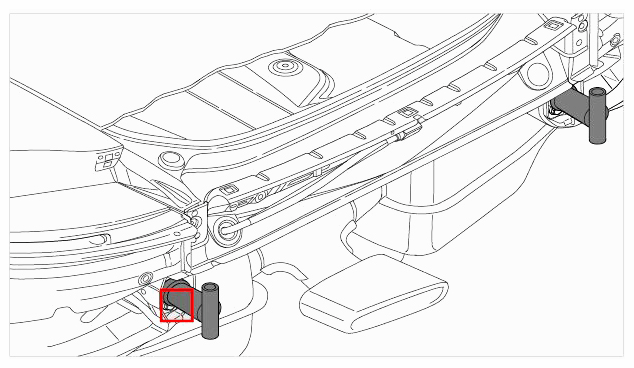

Fig 1: Identifying Rear Carrier Installation Position
G09590705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position the impact pipe -2-  with seal -3-  .
  2. Screw in fastening screws -1-  and tighten to the required tightening torque → Tightening torque: 17 ftlb.  .

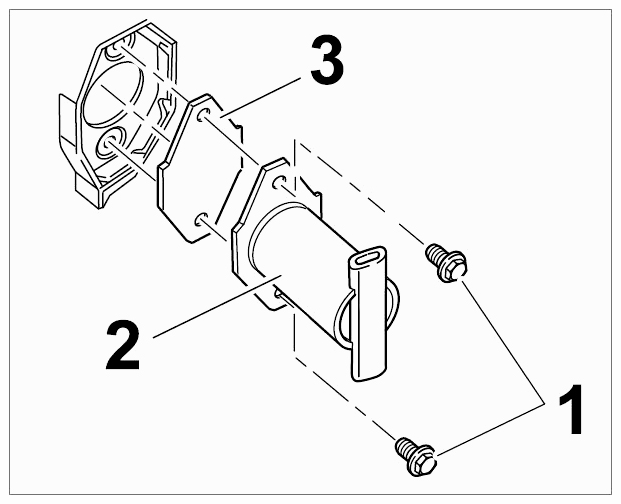

    3. Fig 2: Identifying Impact Pipe, Seal And Mounting Screws
    G09590706Courtesy of PORSCHE CARS NORTH AMERICA, INC.
