Removing Rear Bumper Horn

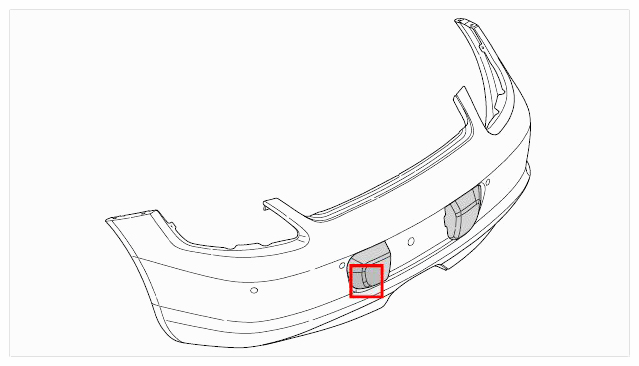

Fig 1: Identifying Rear Bumper Overrider Installation Position
G09590697Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert a screwdriver laterally into the inner retaining bracket -1-  . Press in the locking tab and take off the bumper overrider -2-  .

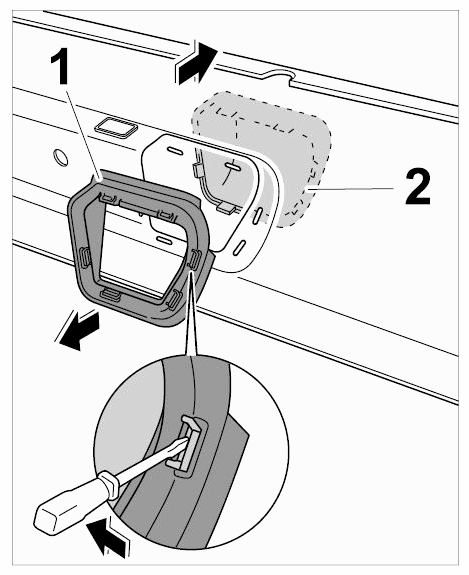

    Fig 2: Removing Rear Bumper Overrider
    G09590698Courtesy of PORSCHE CARS NORTH AMERICA, INC.
