Installing Rear Retaining Strip

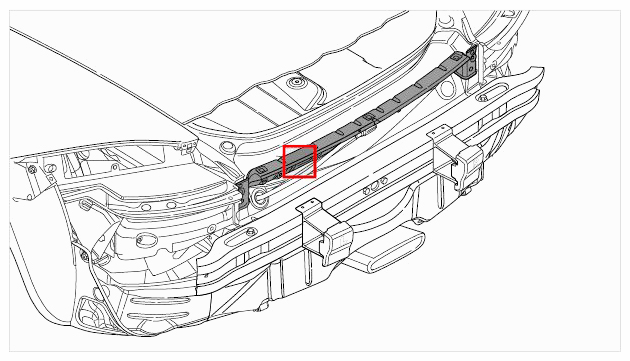

Fig 1: Identifying Rear Retaining Strip Installation Position
G09590692Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position rear retaining strip -2-  .
  2. Fit and tighten fastening nuts -1-  slightly.
  3. Adjust the rear retaining strip. → Additional Assembly Instructions For Installing Rear Retaining Strip

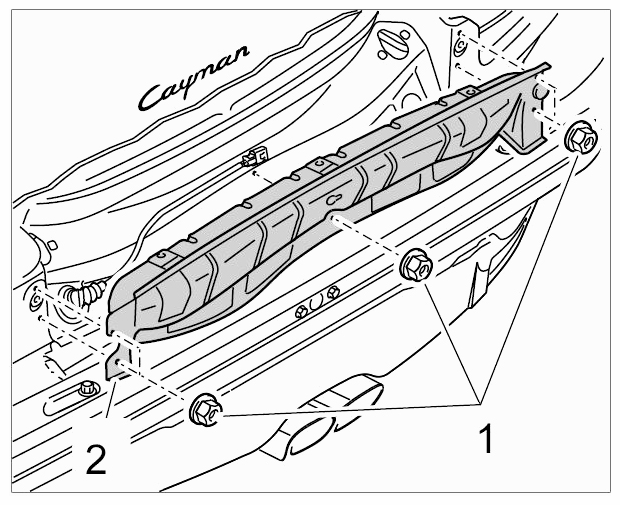

    4. Fig 2: Identifying Rear Retaining Strip And Mounting Screws
    G09590693Courtesy of PORSCHE CARS NORTH AMERICA, INC.
