Installing Support

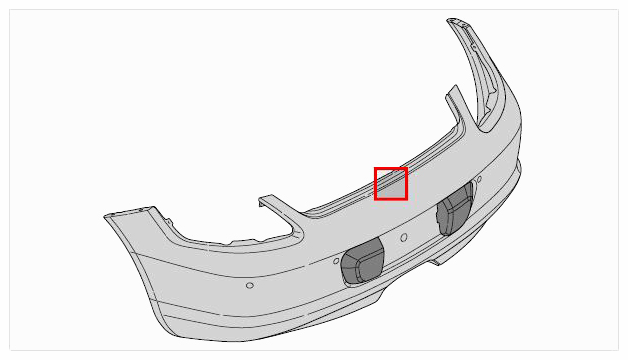

Fig 1: Identifying Rear Apron
G09590675Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert support -2-  in -direction of Arrow A-  , align and fasten by pressing on new retaining clips -3-  in the rear apron -1- -Arrow B-  .

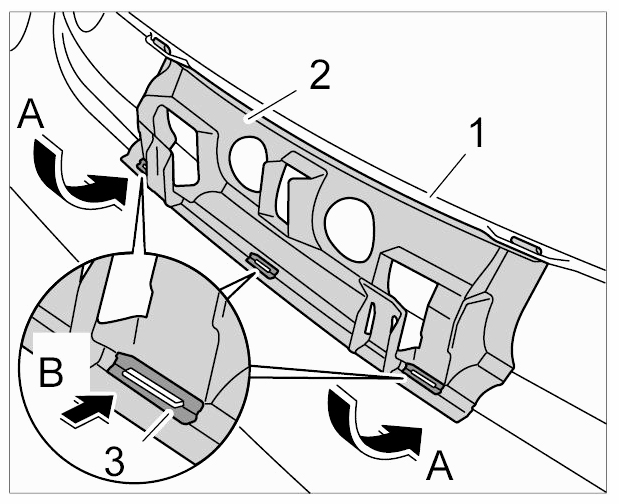

    Fig 2: Installing Rear Apron Support
    G09590676Courtesy of PORSCHE CARS NORTH AMERICA, INC.
