Installing Cover Plate

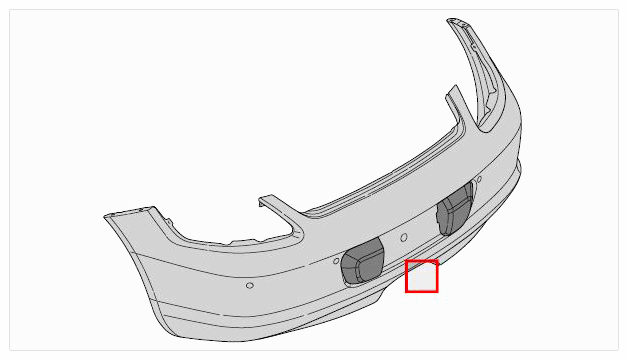

Fig 1: Identifying Rear Apron
G09590671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position cover plate -1-  on the rear apron -2-  and press in until the locking tabs engage -arrows-  .

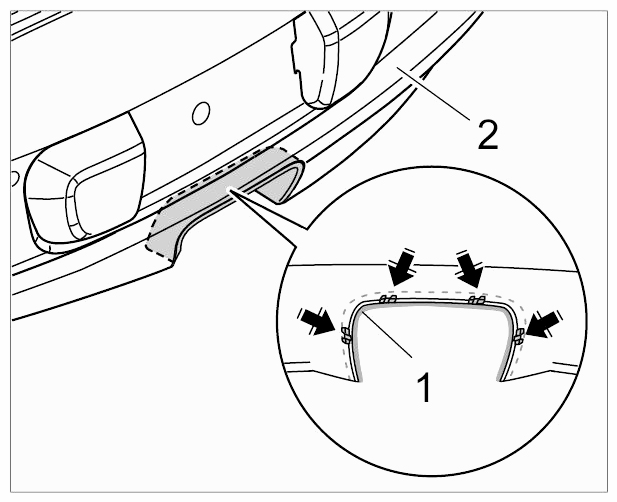

    Fig 2: Installing Rear Apron Cover Plate
    G09590672Courtesy of PORSCHE CARS NORTH AMERICA, INC.
