Installing Cover Cap

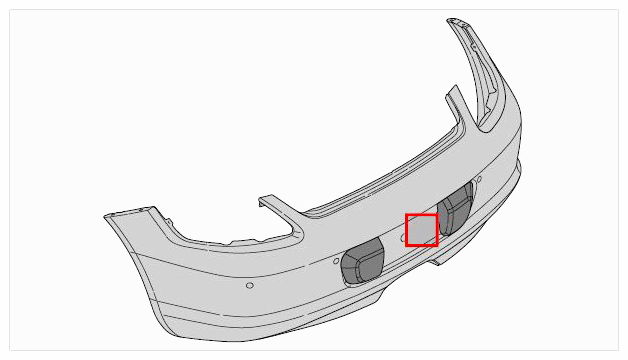

Fig 1: Identifying Rear Apron
G09590673Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull the securing cord -3-  into the eyelet of the rear apron -1-  . Insert cap -2-  into the rear apron -1-  .

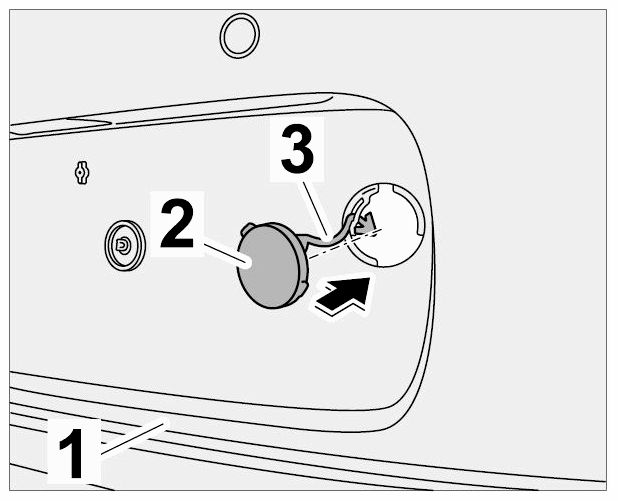

    Fig 2: Installing Rear Apron Cover Cap
    G09590674Courtesy of PORSCHE CARS NORTH AMERICA, INC.
