Installing Cap

  1. Pull the securing cord -3-  into the eyelet on the rear apron -2-  (-arrow-  ).
  2. Clip cap -2-  into the rear apron -1-  .

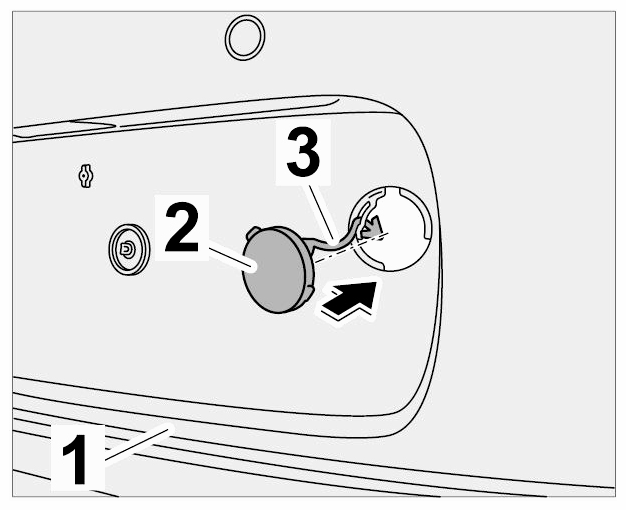

    3. Fig 1: Installing Rear Apron Cap
    G09590684Courtesy of PORSCHE CARS NORTH AMERICA, INC.
