Affixing Joining Latch

Information

Bonding surfaces must be clean and free of grease.

1. Affix joining latch -2-  in the marked areas of the rear apron -1-  at dimension -X= 10 +/- 5 mm-  so that it is flush at the edge -arrow-  .

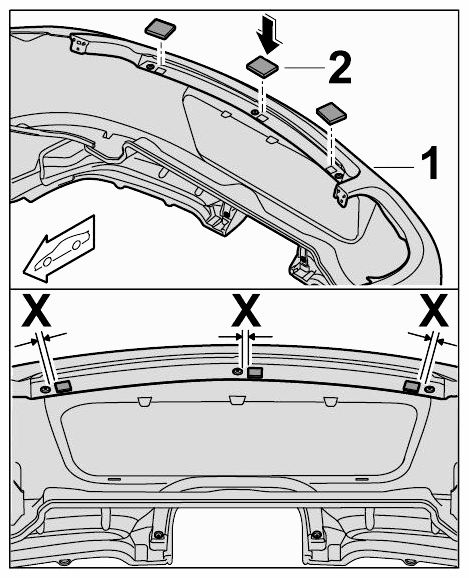

   Fig 1: Installing Joining Latch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
