Gap Dimension Of Tailpipe

→ Observe exact gap dimensions.

→ After the test drive, check the gap dimensions again and re-adjust if necessary.

1. Check gap dimension of tailpipe -1-  to rear apron -2-  and adjust tailpipe if necessary. → REMOVING TAILPIPE

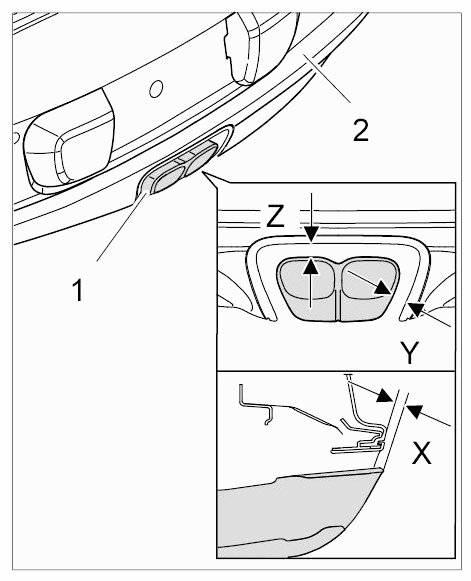

   Fig 1: Identifying Tailpipe Gap Dimension

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   → Gap dimension: 10 mm+/-2 mm

   → Gap dimension: 22 mm+2 mm-1 mm

   → Gap dimension: 20 mm+2 mm

→ Observe exact gap dimensions.

→ After the test drive, check the gap dimensions again and re-adjust if necessary.

1. Check gap dimension of tailpipe -1-  to rear apron -2-  and adjust tailpipe if necessary. → REMOVAL

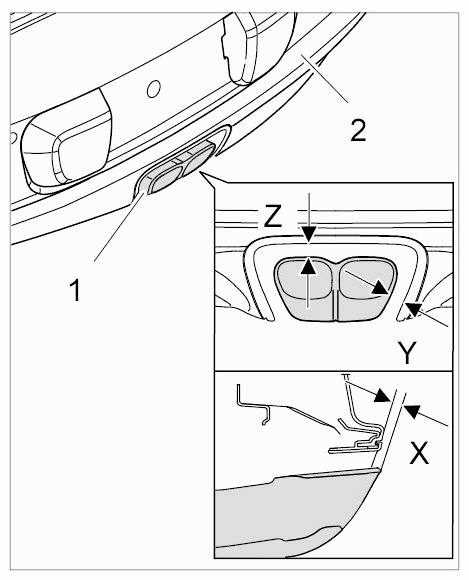

   Fig 1: Identifying Tailpipe Gap Dimension

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   → Gap dimension: 10 mm+/-2 mm

   → Gap dimension: 22 mm+2 mm-1 mm

   → Gap dimension: 20 mm+2 mm
