Removing Support With Heat Shield At The Sides

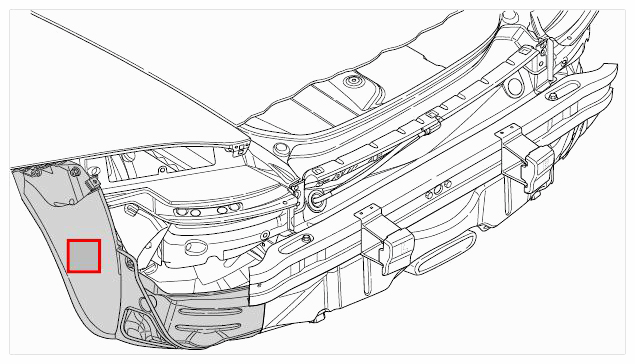

Fig 1: Identifying Support Heat Shield Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew fastening nuts -1, 2-  and remove support with heat shield at the sides -3-  .

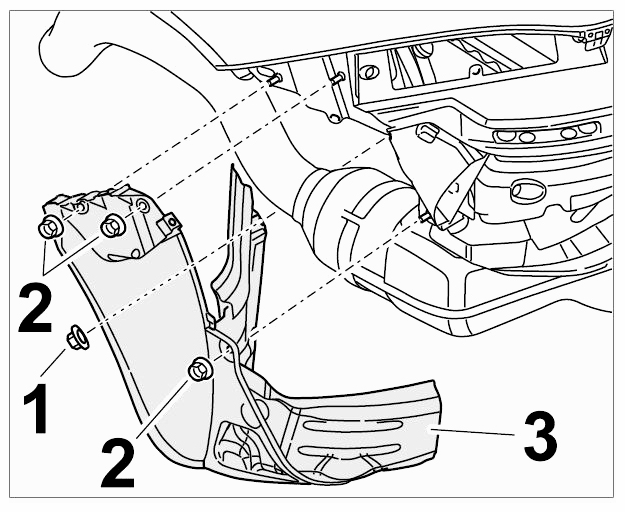

   Fig 2: Identifying Heat Shield And Mounting Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
