Installing Support With Heat Shield At The Sides

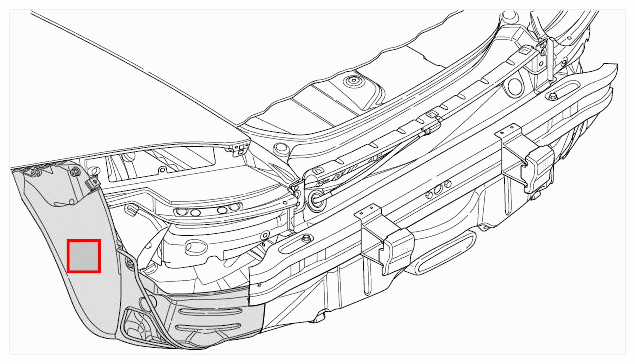

Fig 1: Identifying Heat Shield Support Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the plastic tabs are incontact with the side panel at the top.

1. Fit support with heat shield at the sides -3-  .
2. Tighten fastening nuts -1-  . → Tightening torque: 2 Nm (1.5 ftlb.)
3. Tighten fastening nuts -2-  . → Tightening torque: 9.7 Nm (7.5 ftlb.)
4. Check that heat shields are fitted correctly and make adjustments if necessary. → Additional Assembly Instructions For Installation Of The Bumper

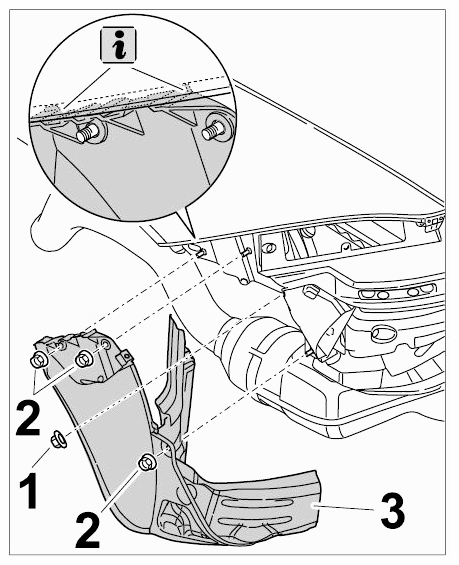

Fig 2: Identifying Heat Shield Components
