Removing Front Impact Pipe

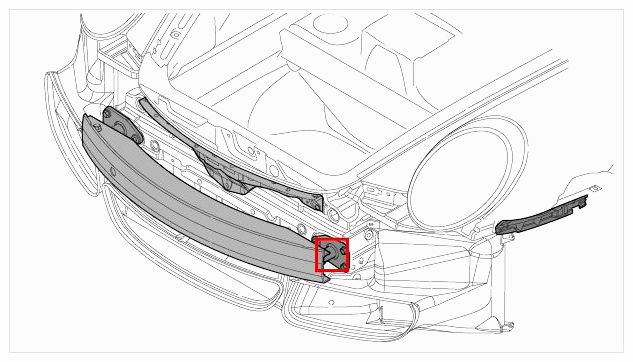

Fig 1: Identifying Front Impact Pipe Installation Position
G09590613Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .
  2. Remove the impact pipe -2-  and seal -3-  .

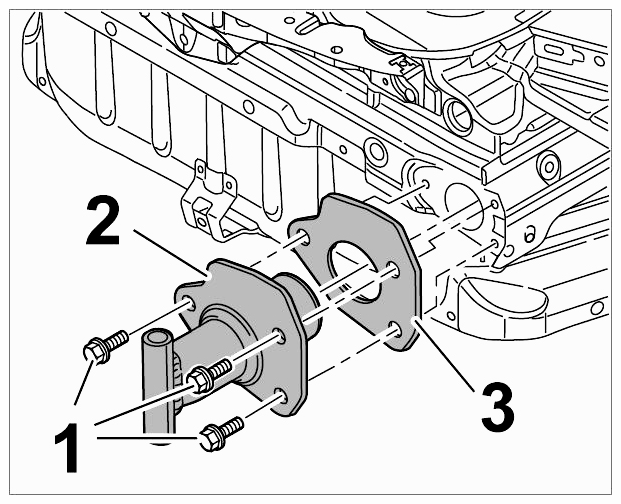

    3. Fig 2: Identifying Impact Pipe, Seal And Mounting Screws
    G09590614Courtesy of PORSCHE CARS NORTH AMERICA, INC.
