Install Front Impact Pipe

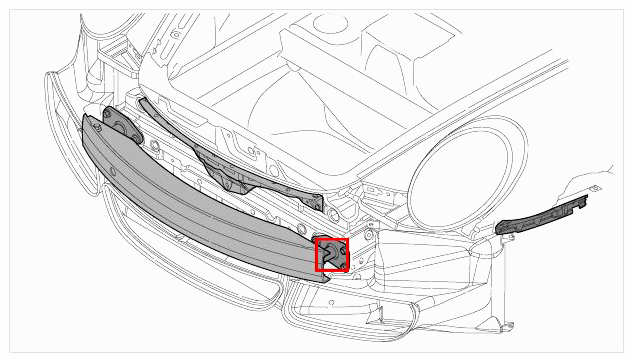

Fig 1: Identifying Front Impact Pipe Installation Position
G09590615Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position the seal impact pipe -3-  and impact pipe -2-  .
  2. Screw in fastening screws -1-  and tighten to the required tightening torque. → Final tightening: 17 ftlb  .

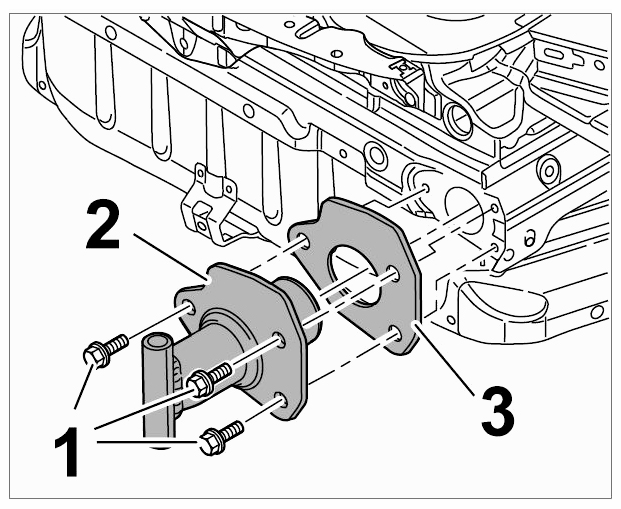

    3. Fig 2: Identifying Impact Pipe, Seal Impact Pipe And Mounting Screws
    G09590616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
