Installing Retaining Clips

  1. Position side retaining clips -2, 3-  on the front apron -1-  and press them in -arrow-  .

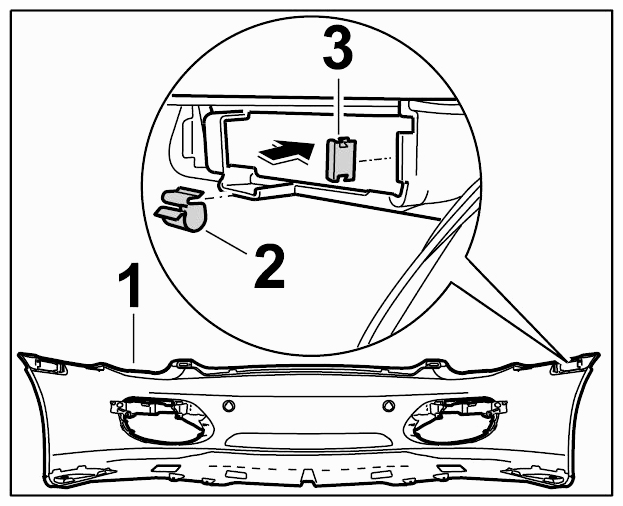

    Fig 1: Installing Front Apron Retaining Clips
    G09590591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
