Disconnecting Electrical Plug Connection

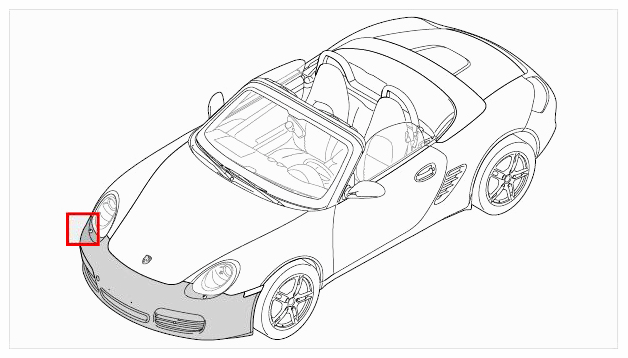

Fig 1: Identifying Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

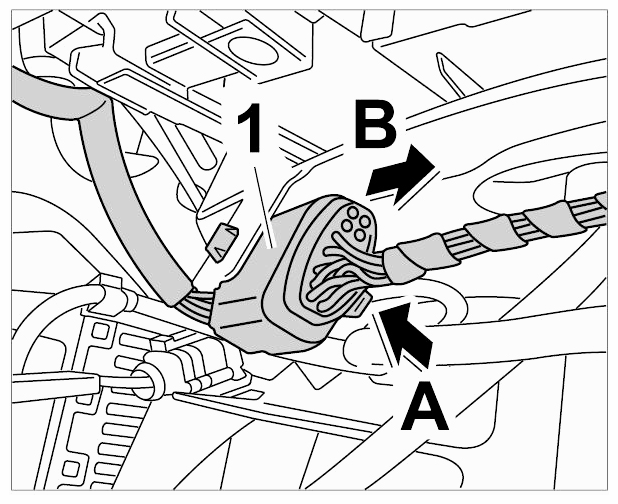

1. Disconnect wiring harness -1-  . Press lug -arrow A-  and pull plug connection apart -arrow B-  .
   Fig 2: Disconnecting Electrical Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
