Securing Front Spoiler Underneath

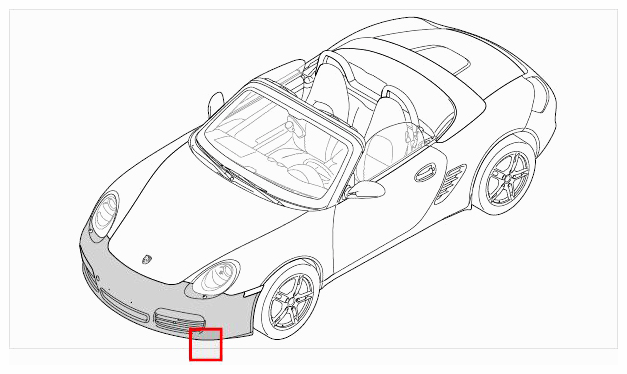

Fig 1: Identifying Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in fastening screws -1- at the bottom on the front apron -2- and tighten to the specified torque. → Final tightening: 2.8 Nm (2 ftlb.)

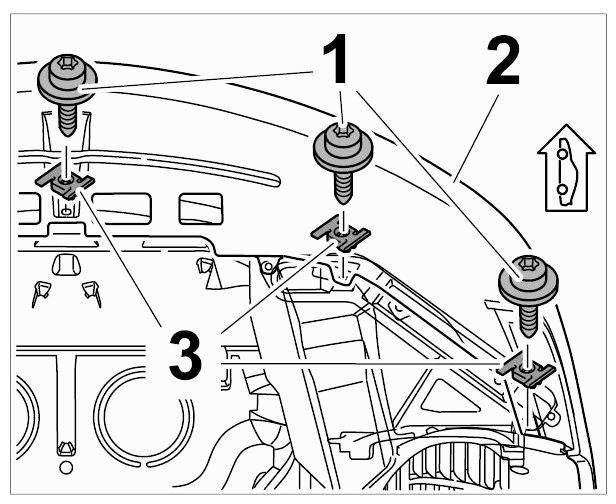

Fig 2: Identifying Front Spoiler And Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check gap dimensions on lid, wing and main headlight. If necessary, unscrew fastening screws and adjust the gap dimensions by moving the front spoiler. → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
