Securing Front Spoiler At The Top

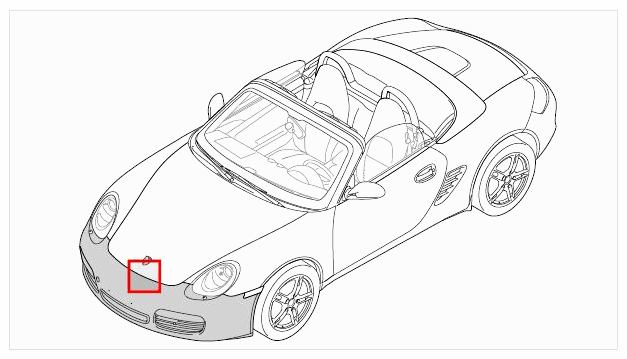

Fig 1: Identifying Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Ensure water and electrical lines are laid properly.

1. Check retaining strip for front apron and replace if necessary. → Removing Front Retaining Strip
2. Check sheetmetal nuts -3-  , replace if necessary.
3. Position the front spoiler -2-  on the body at the front.

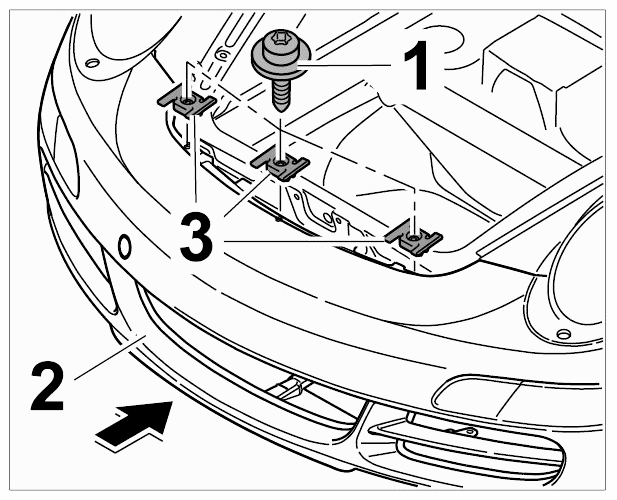

   Fig 2: Securing Front Spoiler At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Screw in fastening screws -1-  at the top on the front apron -2-  and tighten to the specified torque. → Final tightening:  2.1 ftlb.
5. Engage locks -1-  at the guides -2-  of the front spoiler and lock in -direction of arrow-  using a plastic wedge.

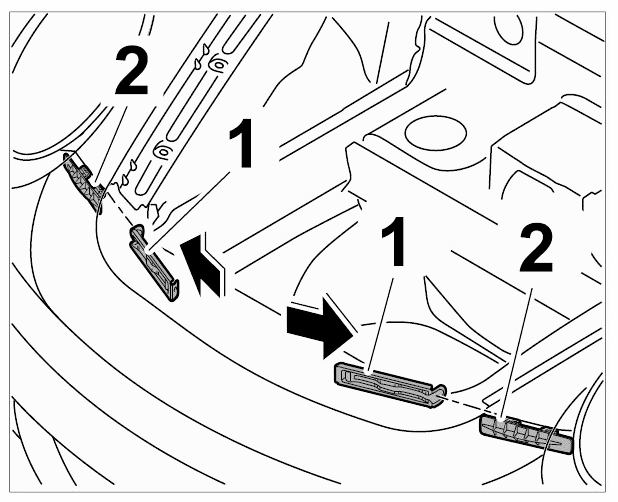

   Fig 3: Securing Front Spoiler At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
