Locking Electric Plug Connection

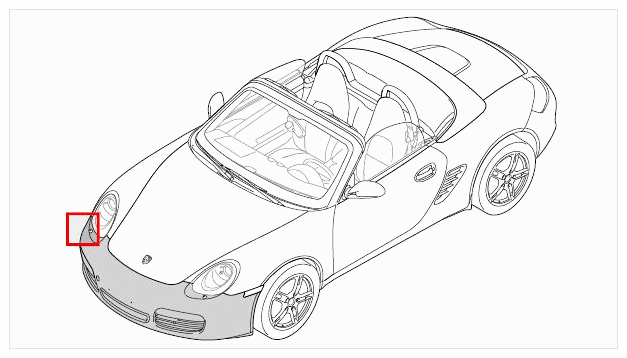

Fig 1: Identifying Front Apron
G09590564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press in -1-  electric plug connection -arrow A-  until it engages audibly.

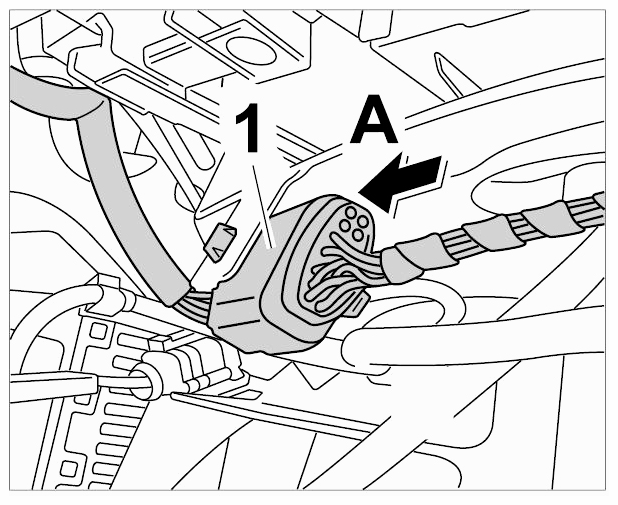

    Fig 2: Locking Electric Plug Connection
    G09590565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
