Loosening Front Apron At The Top

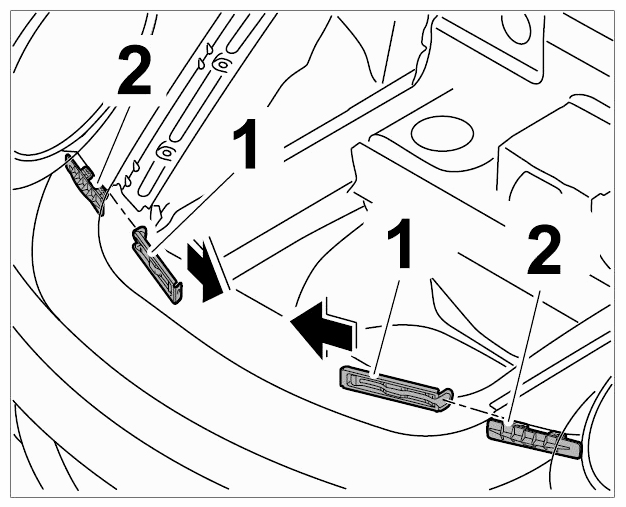

  1. Secure locking mechanisms -1-  with assembly tool T10118 at the guides -2-  on the front apron in -arrowrichtung-  .
    Fig 1: Loosening Front Apron From Top
    G09590576Courtesy of PORSCHE CARS NORTH AMERICA, INC.

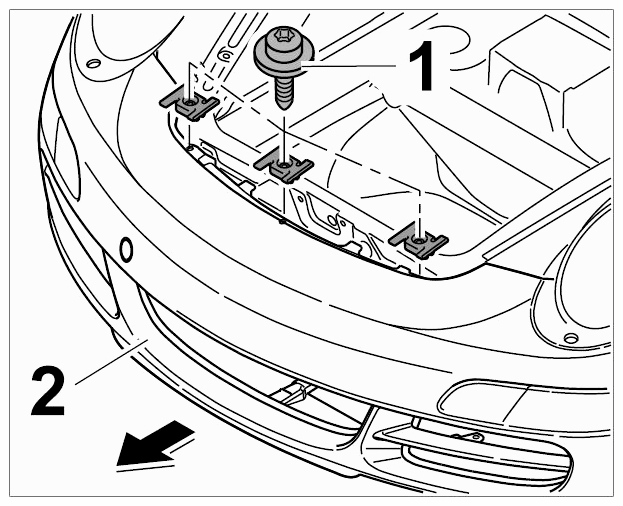

  2. Unscrew fastening screws -1-  at the top of the front apron -2-  .
  3. Remove front apron -2-  by pulling it towards the front -arrow-  .
    4. Fig 2: Loosening Front Apron From Top
    G09590577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
