Loosening Front Apron At The Sides

  1. Unscrew fastening screws -1-  at the sides of the front apron -2-  .

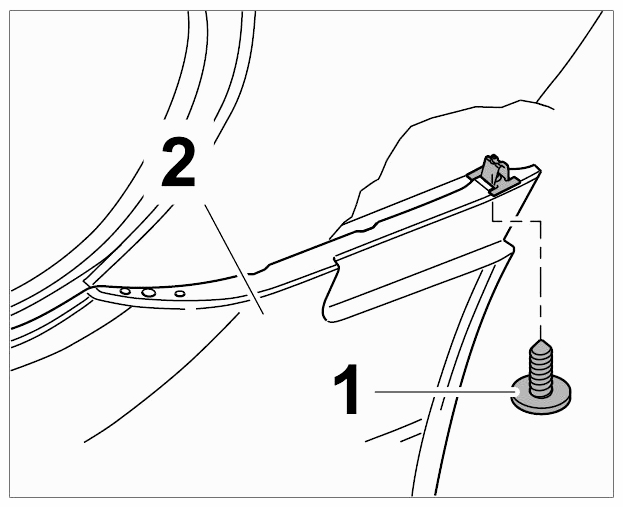

    Fig 1: Identifying Front Spoiler And Mounting Screws
    G09590572Courtesy of PORSCHE CARS NORTH AMERICA, INC.
