Disconnecting Plug Connections For Front Apron

  1. Disconnect plug connection in the right wheel housing.
    1. 1.1. Release plug connection -1-  by pressing in the locking lug -arrow A-  and pull it off -arrows B-  .

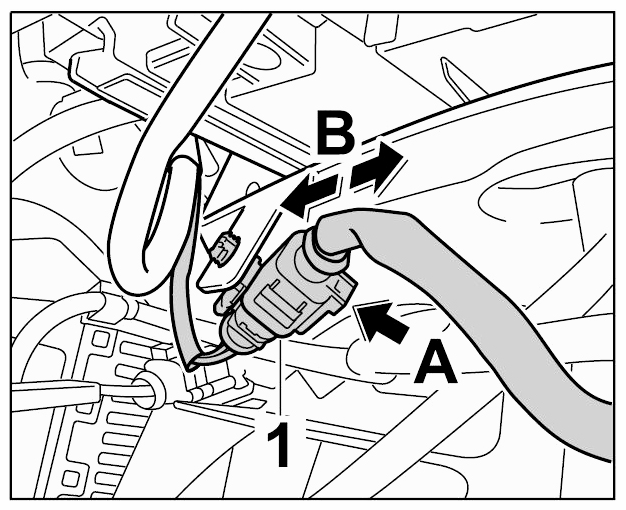

      Fig 1: Disconnecting Front Apron Plug Connection
      G09590574Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect plug connection in the left wheel housing.
    1. 2.1. Release plug connection -1-  by pressing in the locking lug -arrow A-  and disconnect it -arrows B-  .

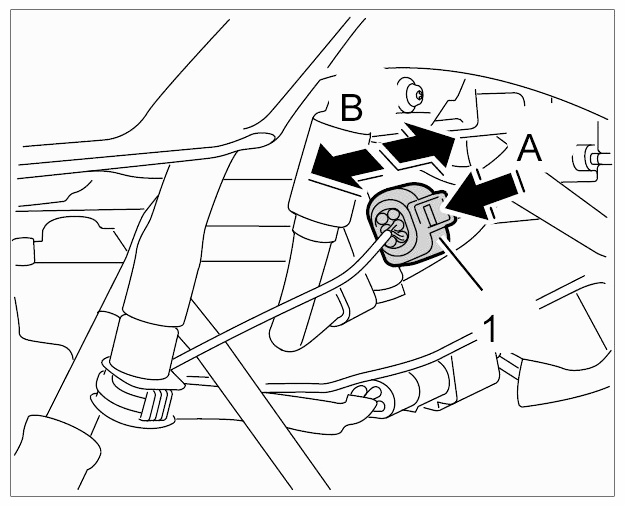

      Fig 2: Disconnecting Left Wheel Housing Plug Connection
      G09590575Courtesy of PORSCHE CARS NORTH AMERICA, INC.
